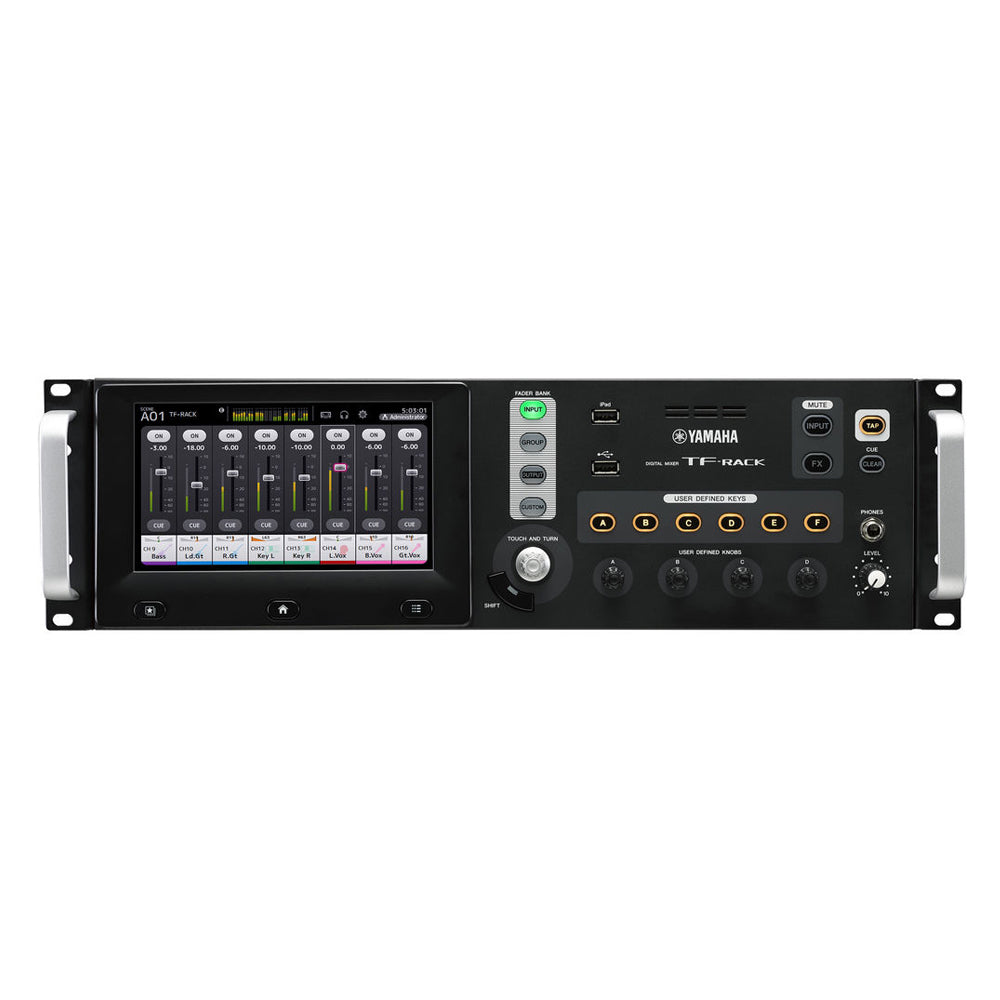

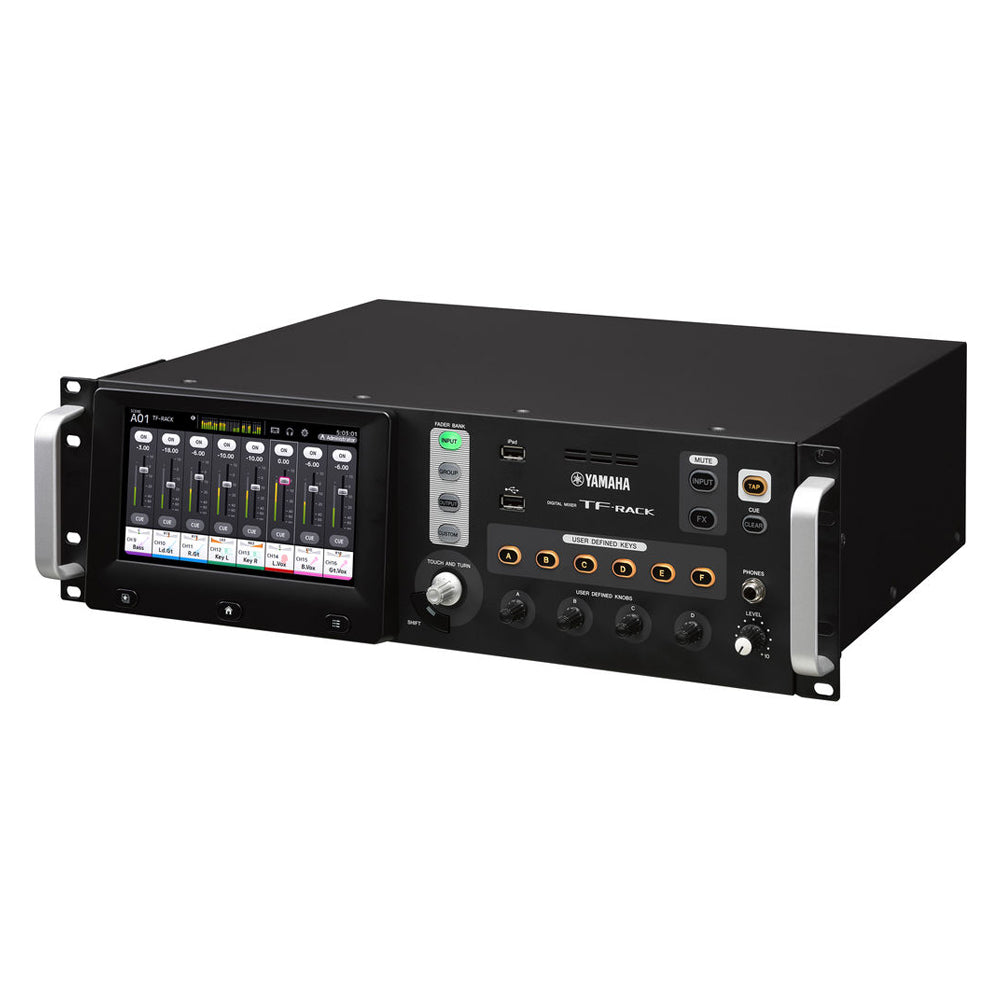

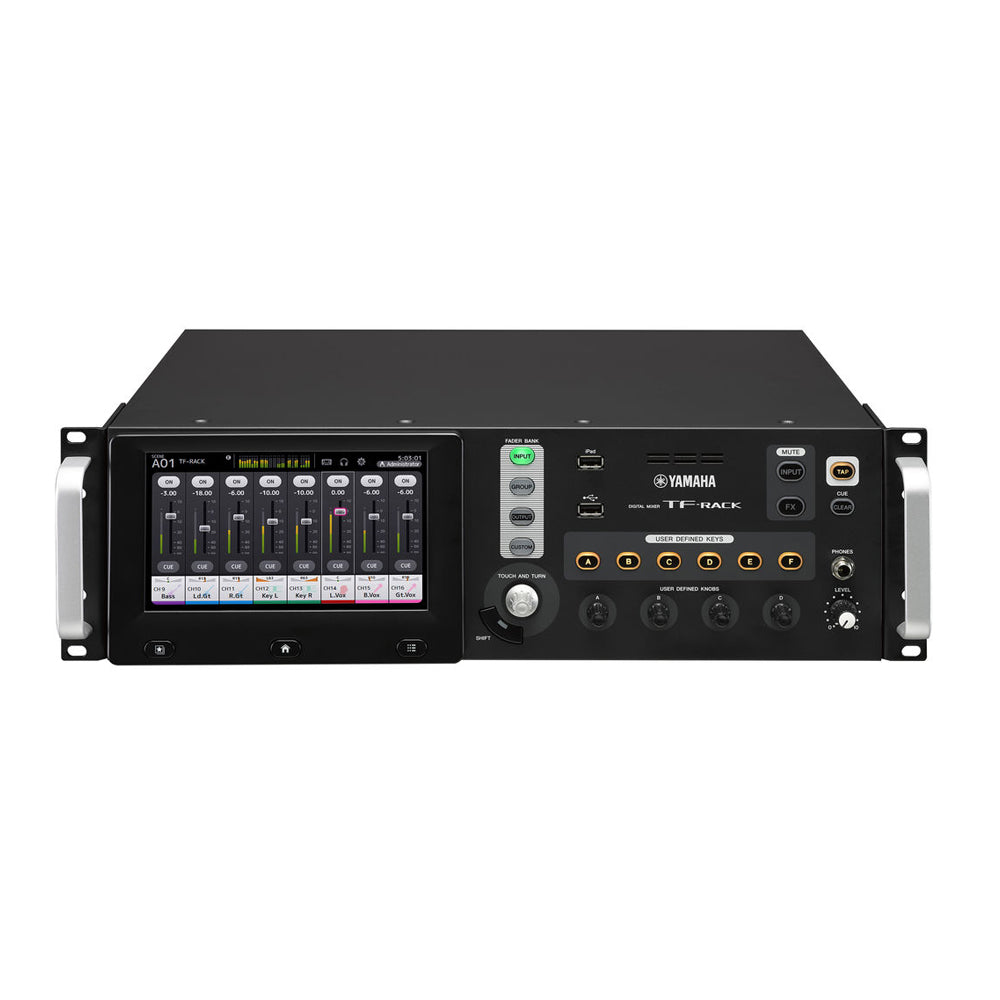

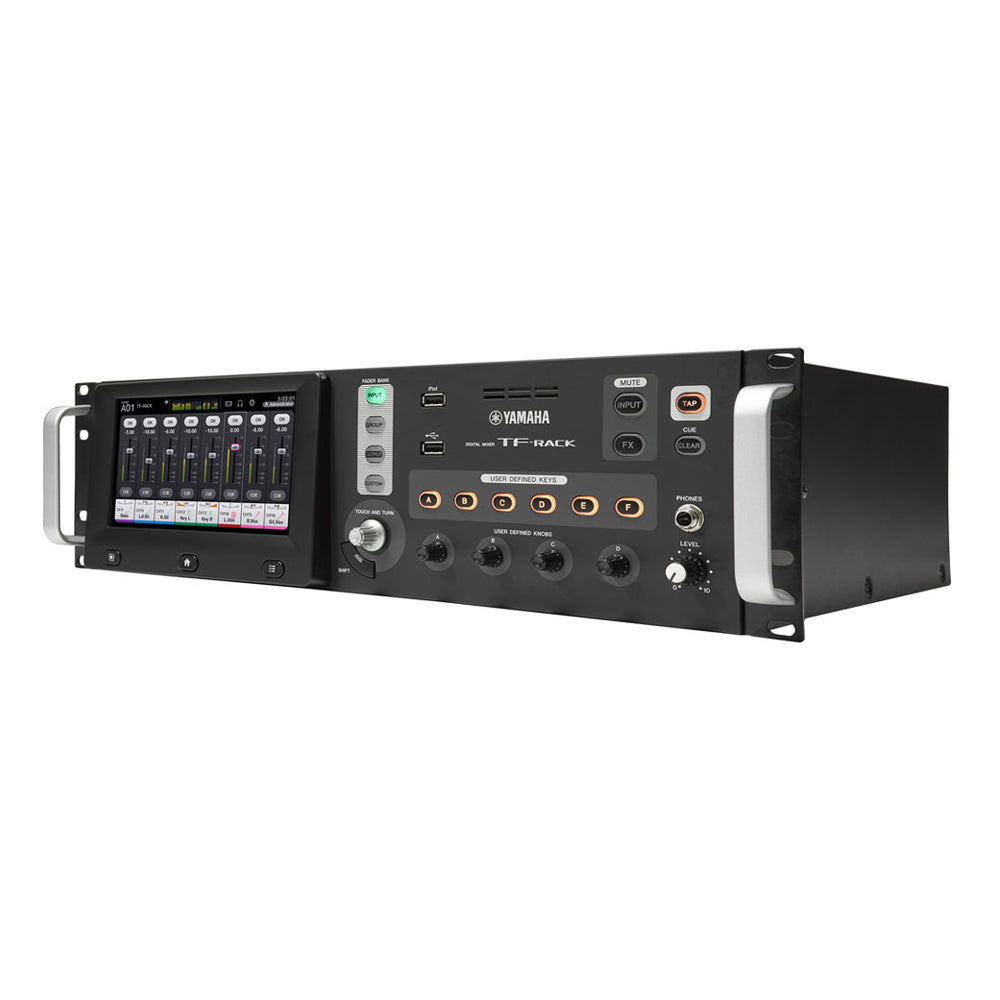

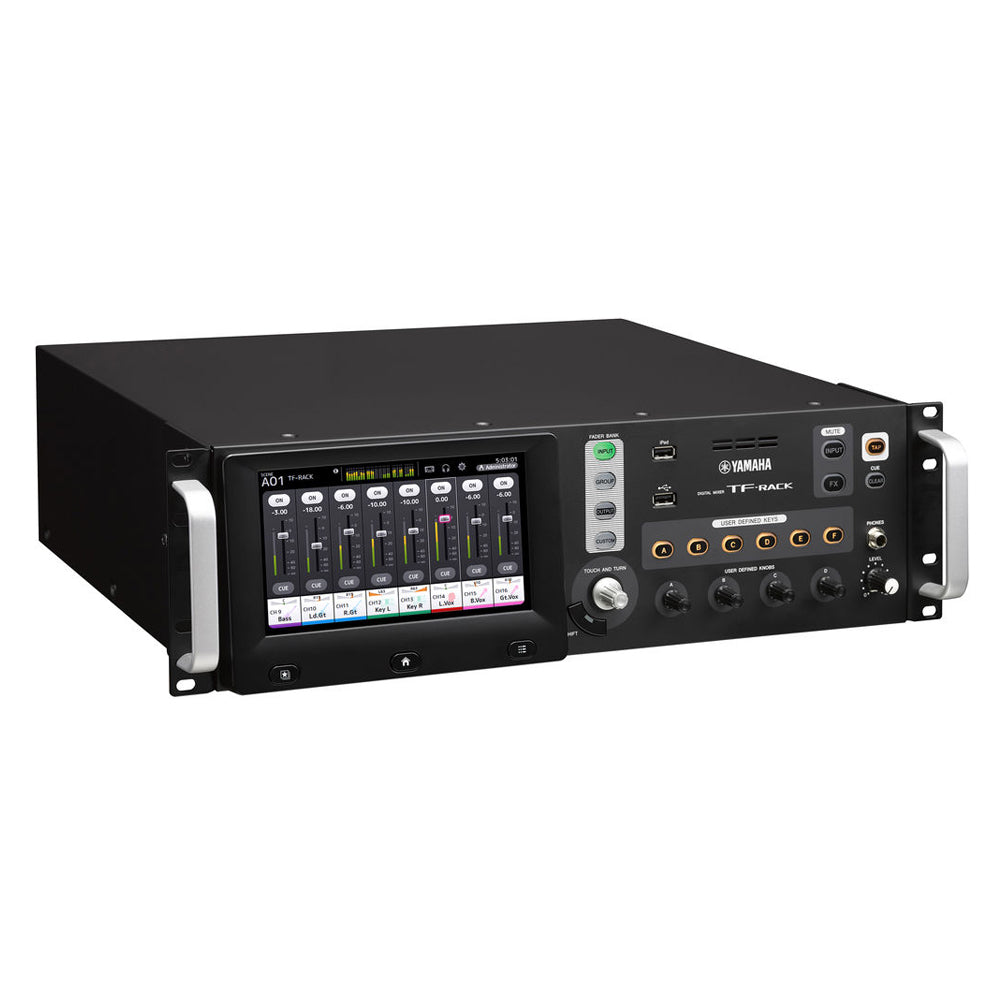

Yamaha TF-RACK 40-Channel Digital Rackmount Mixer
Ever since the first Yamaha digital mixer was released in 1987, the company has been a leader in digital mixer innovation for a wide range of applications. For small events and halls, large-scale outdoor concerts, music production, commercial installations and more, Yamaha offers a comprehensive lineup that delivers world-renowned sonic quality, operability, functionality and reliability.
TF Series digital mixing consoles released in 2015 offer TouchFlow Operation™ which allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications.
The new TF-RACK is a compact rack-mount version of the TF Series, offering the same levels of performance and groundbreaking operability. This space-saving model is accessible to a wide range of users, from beginners to seasoned engineers. The TF-RACK is an unbeatable choice when smooth, intuitive setup and operation is required in limited spaces.
Features:
- TouchFlow Operation maximizes workflow efficiency
- 1-knob compression and EQ dial in your ideal sound
- GainFinder supports precision gain setup
- Dan Dugan automatic mixing system easily optimizes microphone gain and fights feedback
- QuickPro presets provide instant access to pro sound setups
- 2 scene memory banks set up and instantly recall your settings
- 16 D-Pre mic preamps deliver phenomenal sound
- Onboard effects based on Yamaha's SPX processor
- TF Editor Mac/PC application offers offline editing and online control
- TF StageMix iPad application provides wireless control
- TF MonitorMix iOS application allows for wireless personal monitoring

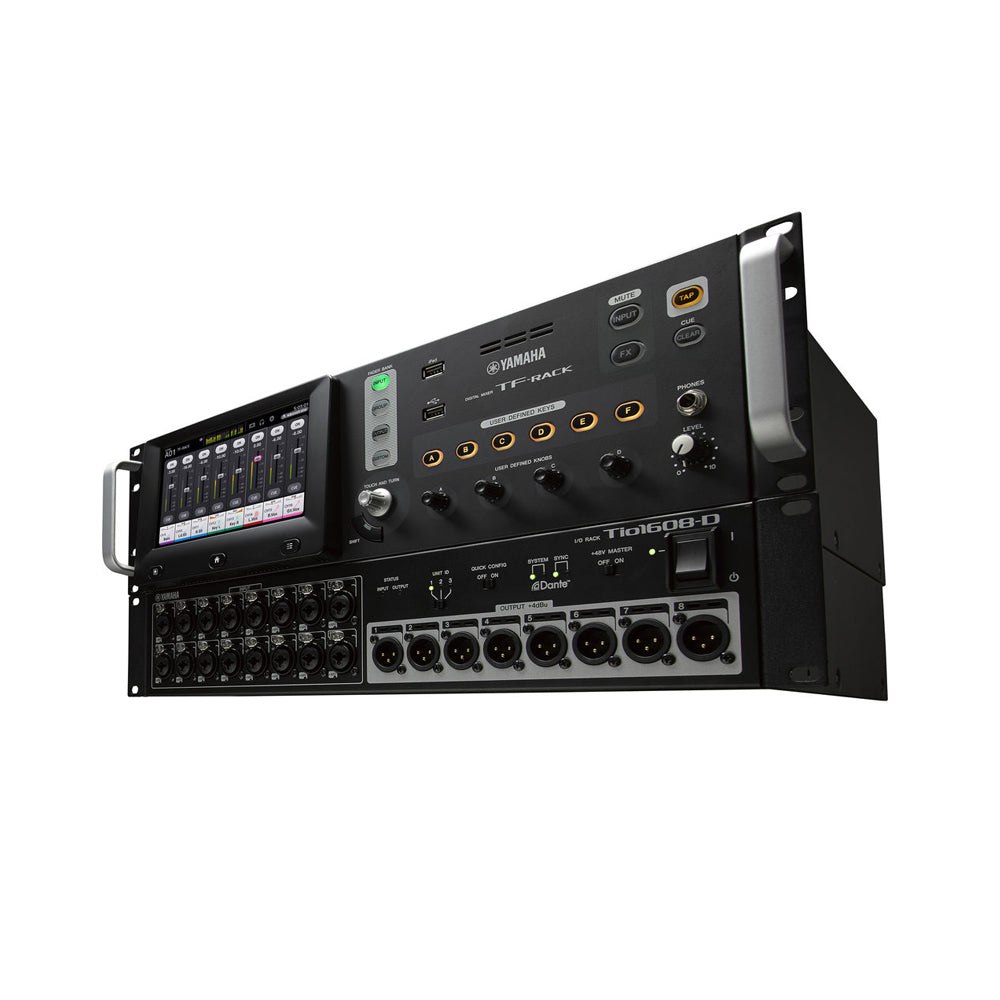

- Expansion slot for optional NY64-D card (expands up to 64 inputs and 40 outputs)

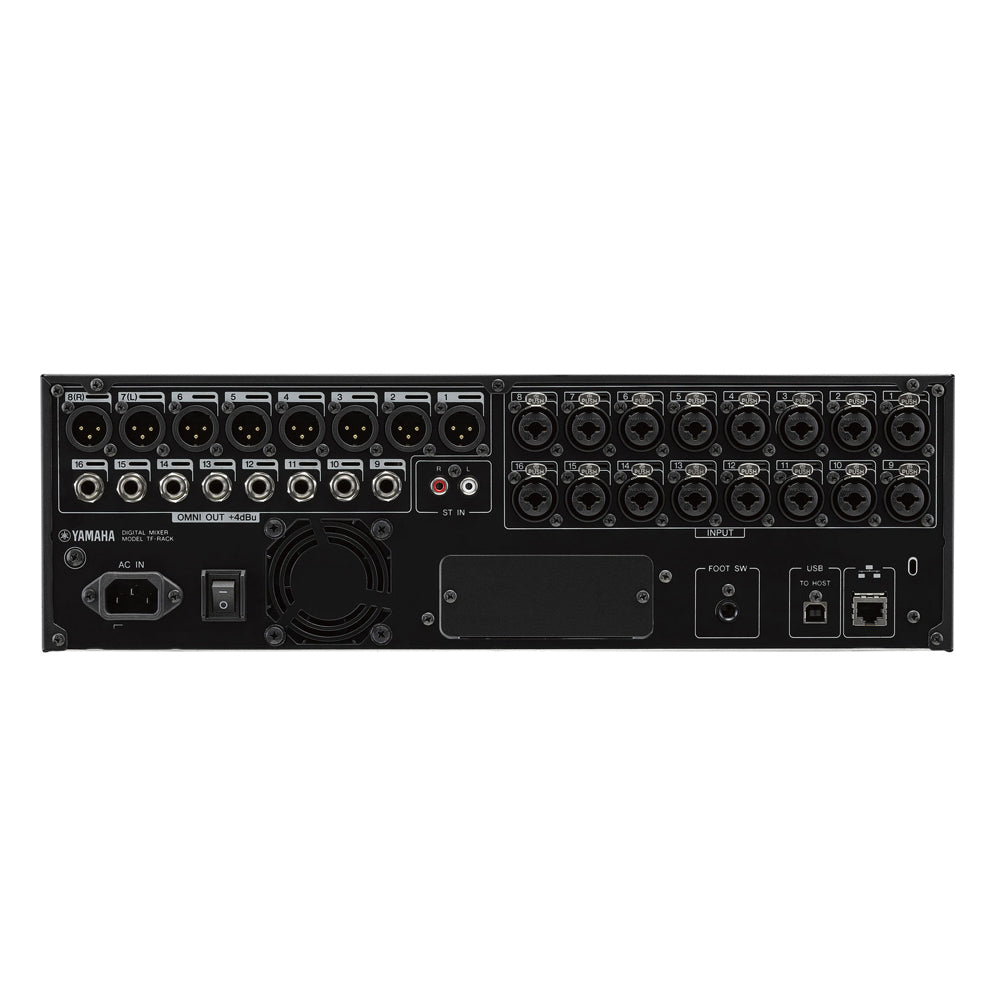

Specs:
- Type:Rackmount Digital Mixer
- Channels:16 - expandable to 40 input mixing channels (32 mono + 2 stereo + 2 returns)
- Inputs - Mic Preamps:16 x XLR-1/4" combo
- Phantom Power:16 channels
- Inputs - Line:16 x XLR-1/4" combo
- Inputs - Other:1 x Dual RCA Stereo
- Outputs - Main:8 x XLR, 8 x 1/4" (omni outs +4dBu)
- Aux Sends:8 x mono, 6 x stereo
- Data I/O:1 x RJ45 (LAN)
- Headphones:1 x 1/4"
- USB:1 x Type B, 2 x Type A
- Computer Connectivity:USB (34 x 34)
- Remote:1 x 1/4" (footswitch)
- I/O Expansion Slots:1 x slot available
- EQ Bands:4-band parametric, 31-band Graphic
- Effects:Reverb, delay, flanger, chorus and more
- Signal Processing:Compression, Gates
- Software:TF Editor software (Windows, Mac), TF StageMix (iPad), MonitorMix (iPhone, iPad, iPod touch)
- Rackmountable:Yes
- Power Source:Standard IEC AC cable
- Height:5.25"
- Depth:16.12"
- Width:18.87"
- Weight:20.3 lbs.
