Yamaha RS720B Revstar Electric Guitar w Bigsby Vibrato Tailpiece
Yamaha RS720B Revstar Electric Guitar w Bigsby Vibrato Tailpiece

Yamaha RS720B Revstar Electric Guitar w Bigsby Vibrato Tailpiece

Yamaha
SKU: RS720B~SB
COLORS: SB
Sale price$799.99 USD Regular price$1,400.00 USD

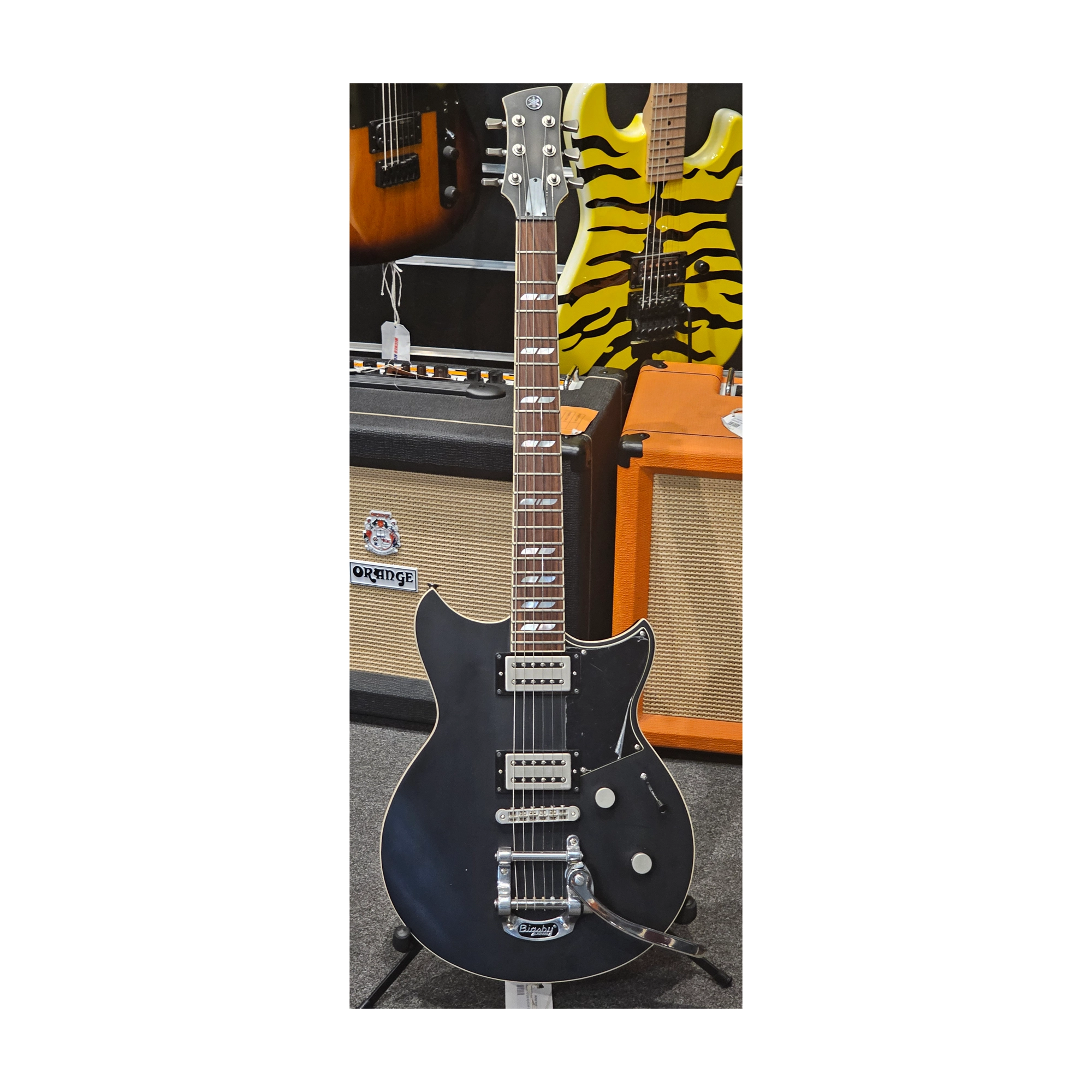

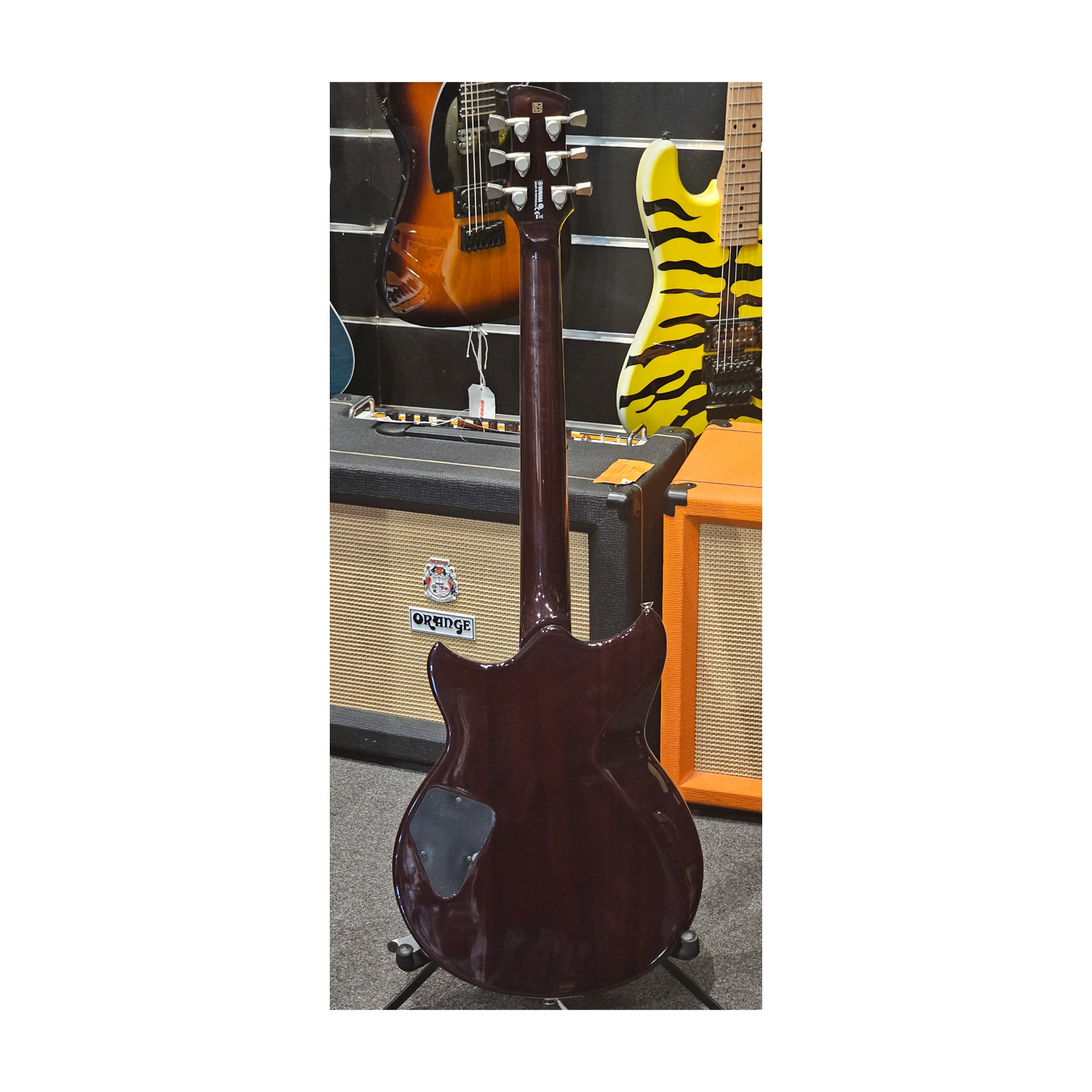

The Yamaha Revstar RS720B is a solid-body electric guitar sporting a double-cutaway design with a small pickguard, a mahogany body with a flame-maple top. A 22-fret rosewood fingerboard sits atop the mahogany neck, and the strings are held in place by a tune-o-matic bridge and Bigsby B50 vibrato tailpiece. The body features a hidden forearm contour, a deep belly cut, and neck joint which allows for easier upper-fret access.

For electronics, the RS720B is fitted with a pair of custom-wound VT5n+ and VT5b+ Alnico V vintage-output humbucking pickups with satin nickel covers, along with a 3-way selector switch, and dual controls for master volume and master tone. The tone knob includes a push/pull dry switch, which filters out low frequencies to bring out the punch and clarity of a true single-coil pickup without the hum or hollow tone often associated with split humbucking pickups.

Features

Body

  • Body shape: Double cutaway
  • Body type: Solid body
  • Body material: Solid wood
  • Top wood: Maple Flame
  • Body wood: Mahogany
  • Body finish: Gloss
  • Orientation: Right handed

Neck

  • Neck shape: Not specified
  • Neck wood: Mahogany
  • Joint: Set-in
  • Scale length: 24.75"
  • Truss rod: Standard
  • Neck finish: Gloss

Fretboard

  • Material: Rosewood
  • Radius: 13.75"
  • Fret size: Jumbo
  • Number of frets: 22
  • Inlays: SF Inlays
  • Nut width: Not specified

Pickups

  • Configuration: HH
  • Neck:  VT5+; Vintage output Filtertron-style pickup with satin nickel cover
  • Middle: Not applicable
  • Bridge: VT5+; Vintage output Filtertron-style pickup with satin nickel cover
  • Brand: Yamaha
  • Active or passive pickups: Passive
  • Series or parallel: Series
  • Piezo: No
  • Active EQ: No
  • Special electronics: Push/pull tone control, Dry switch

Controls

  • Control layout: Master volume, tone
  • Pickup switch: 3-way
  • Coil tap or split: No
  • Kill switch: No

Hardware

  • Bridge type: Fixed
  • Bridge design: Tune-o-matic
  • Tailpiece: Bigsby B50
  • Tuning machines: Die-cast locking
  • Color: Chrome

Other

  • Number of strings: 6-string
  • Special features: Pickups
  • Case: Gig bag
  • Accessories: None
