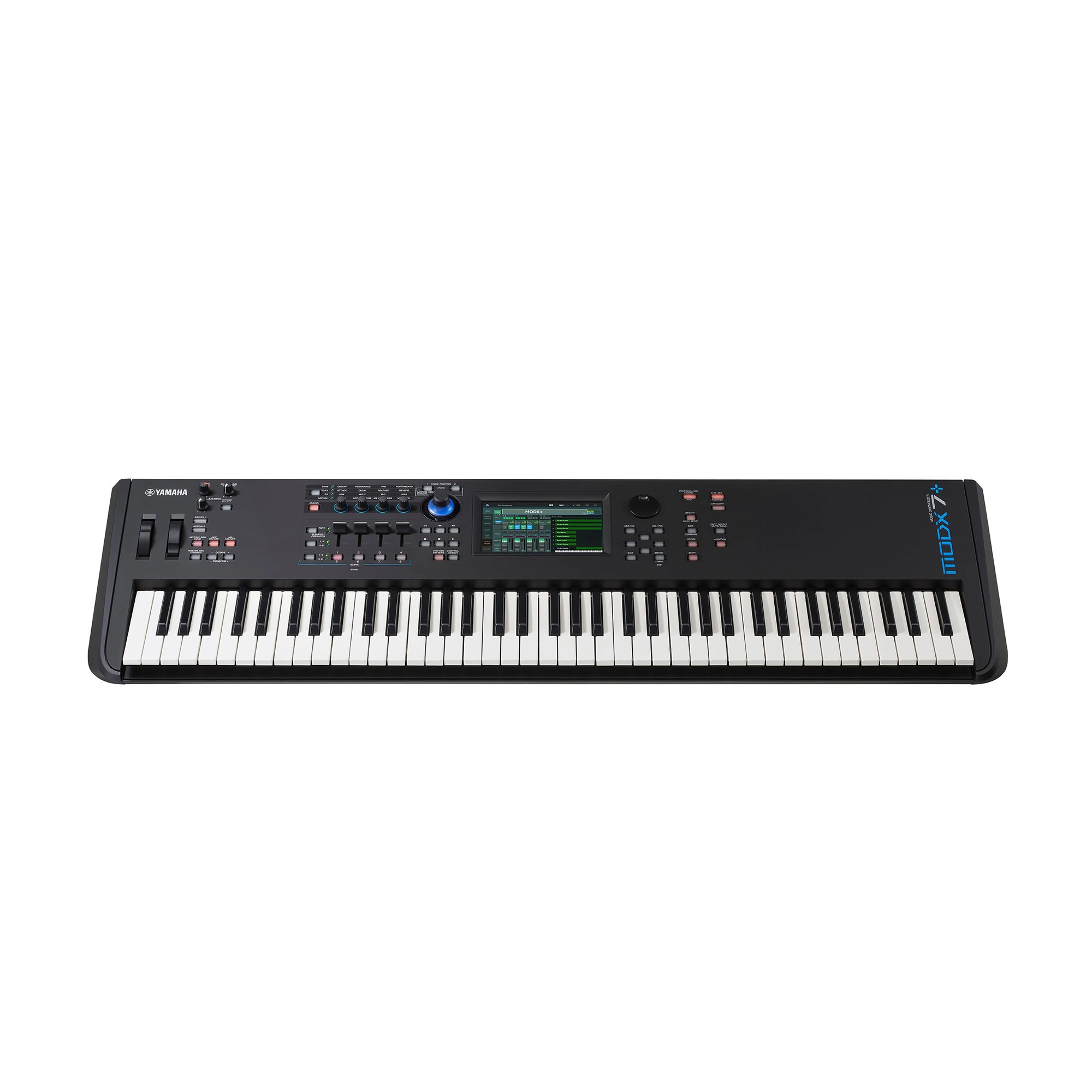

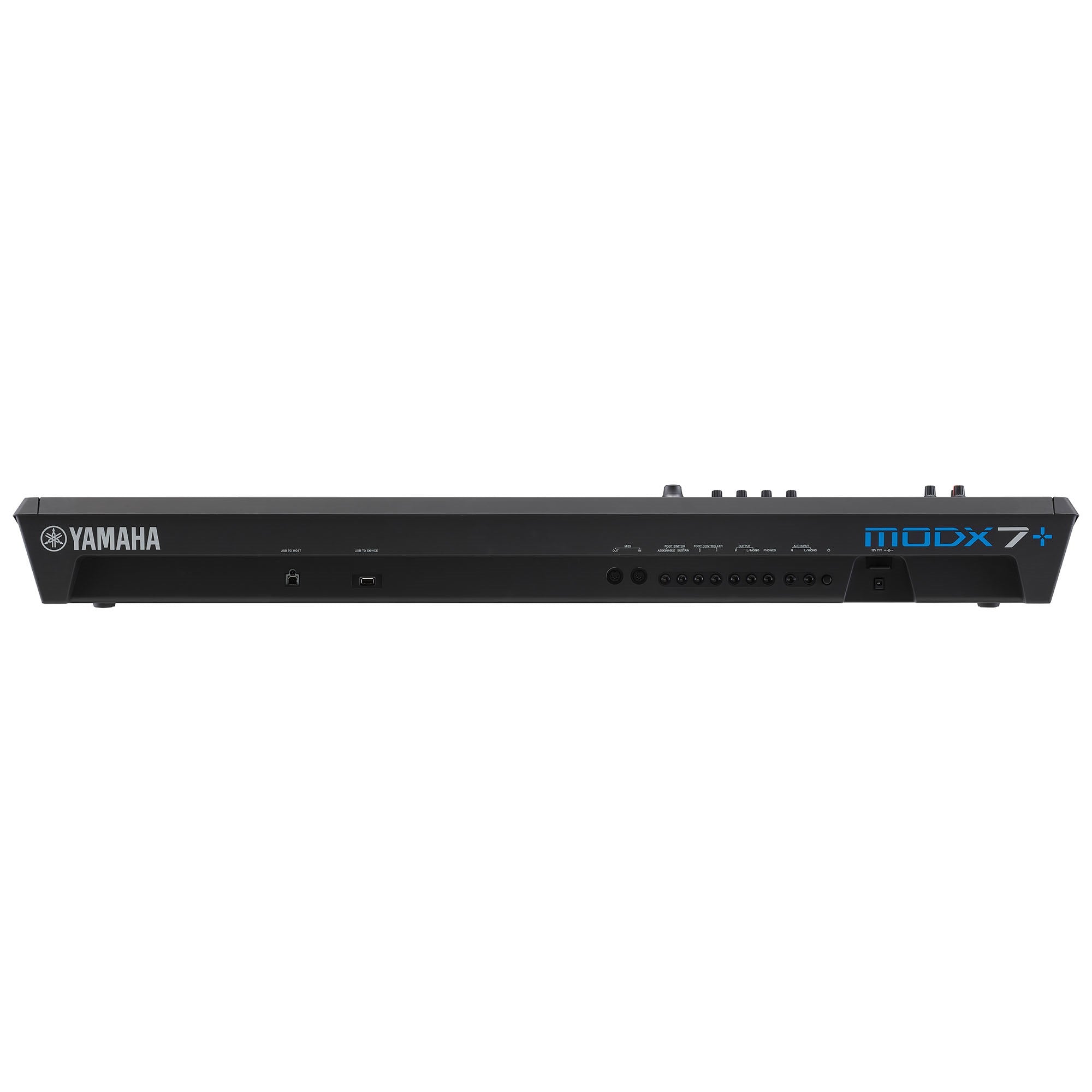

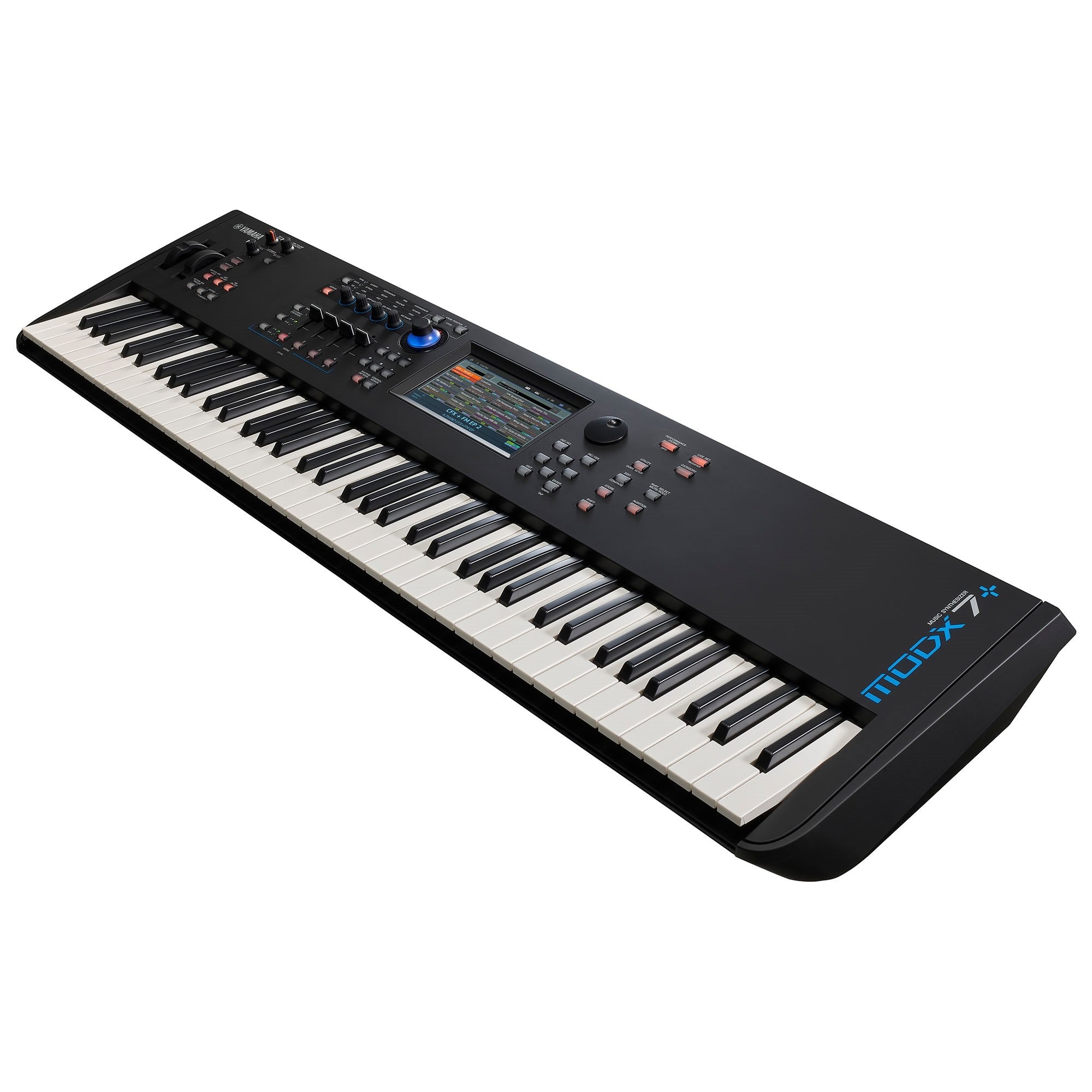

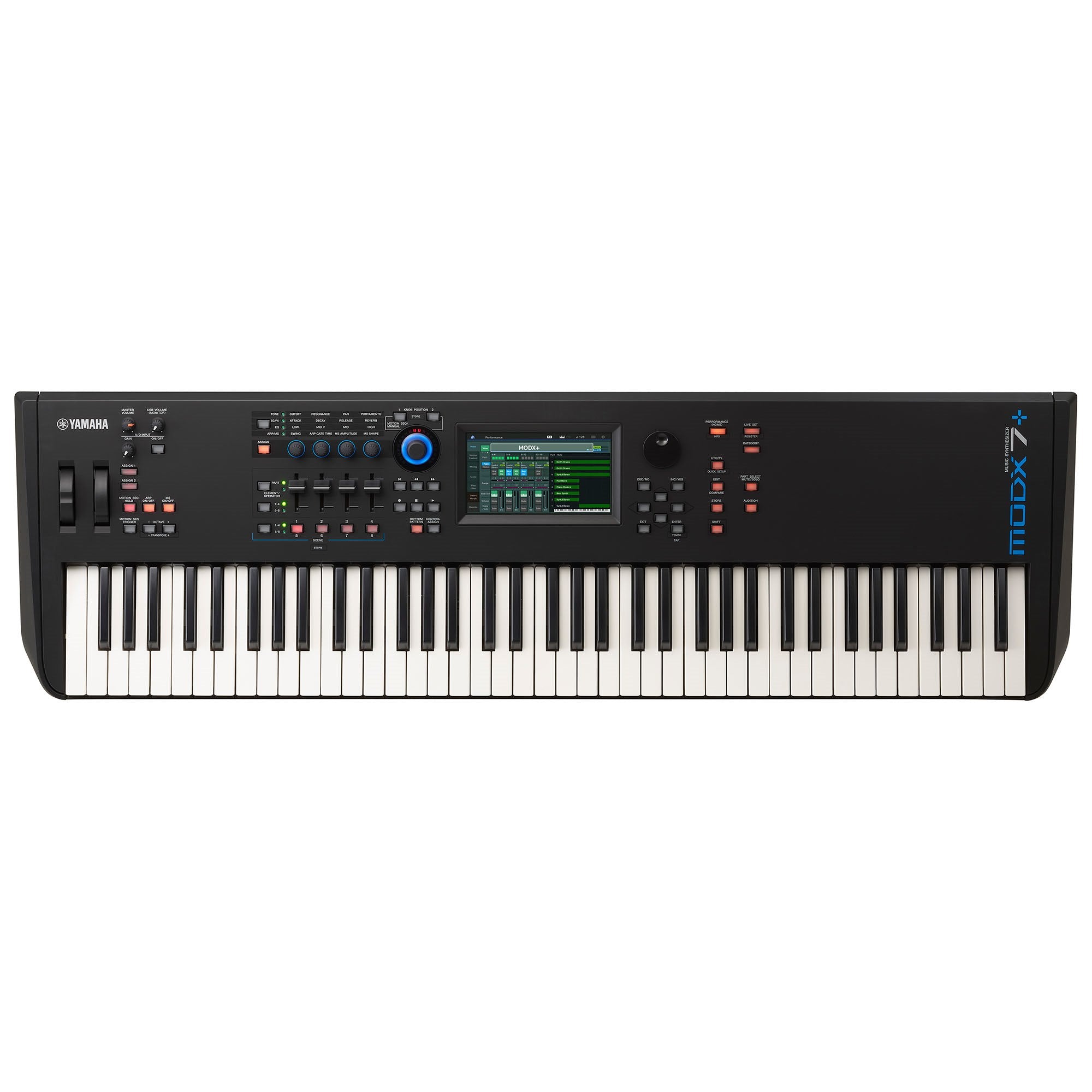

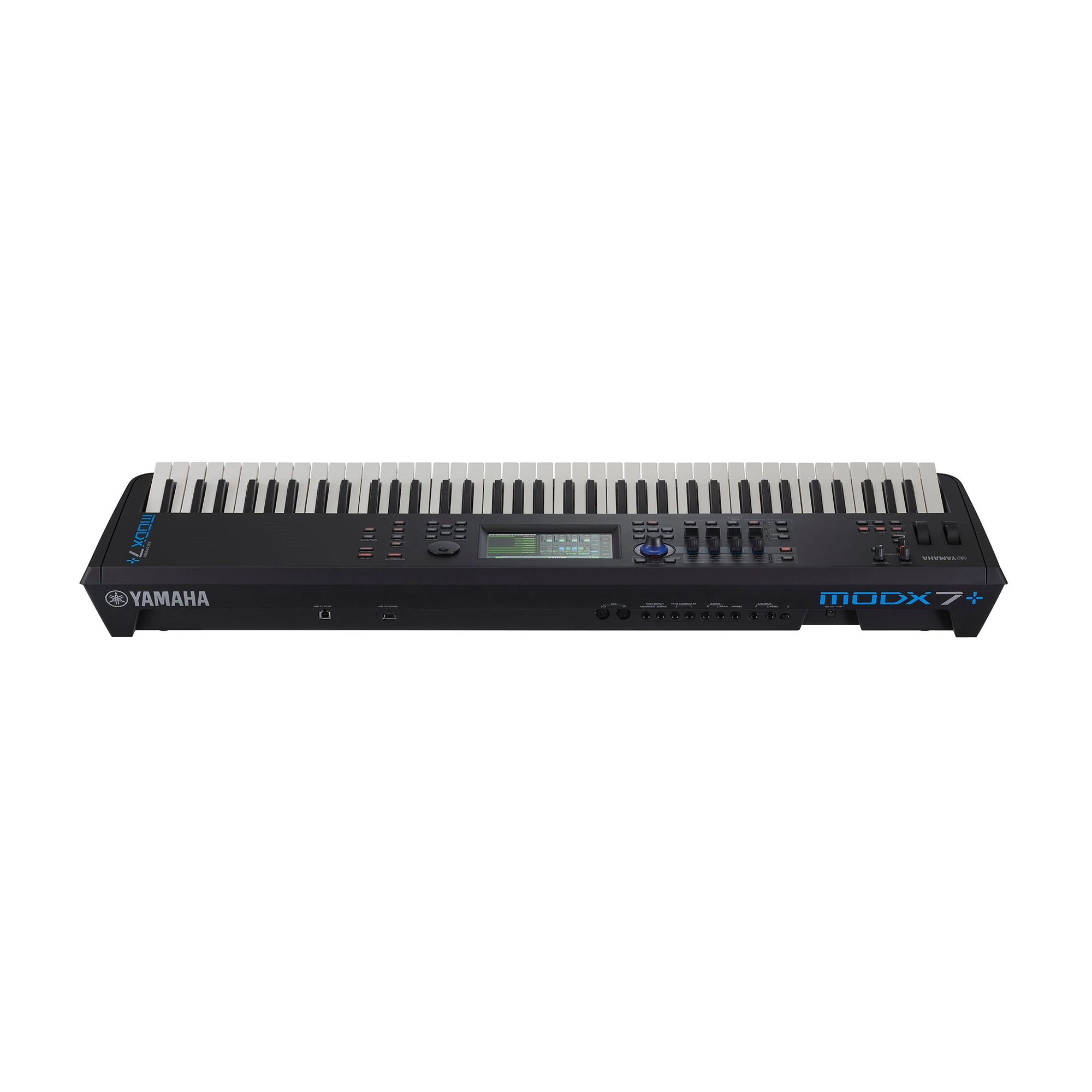

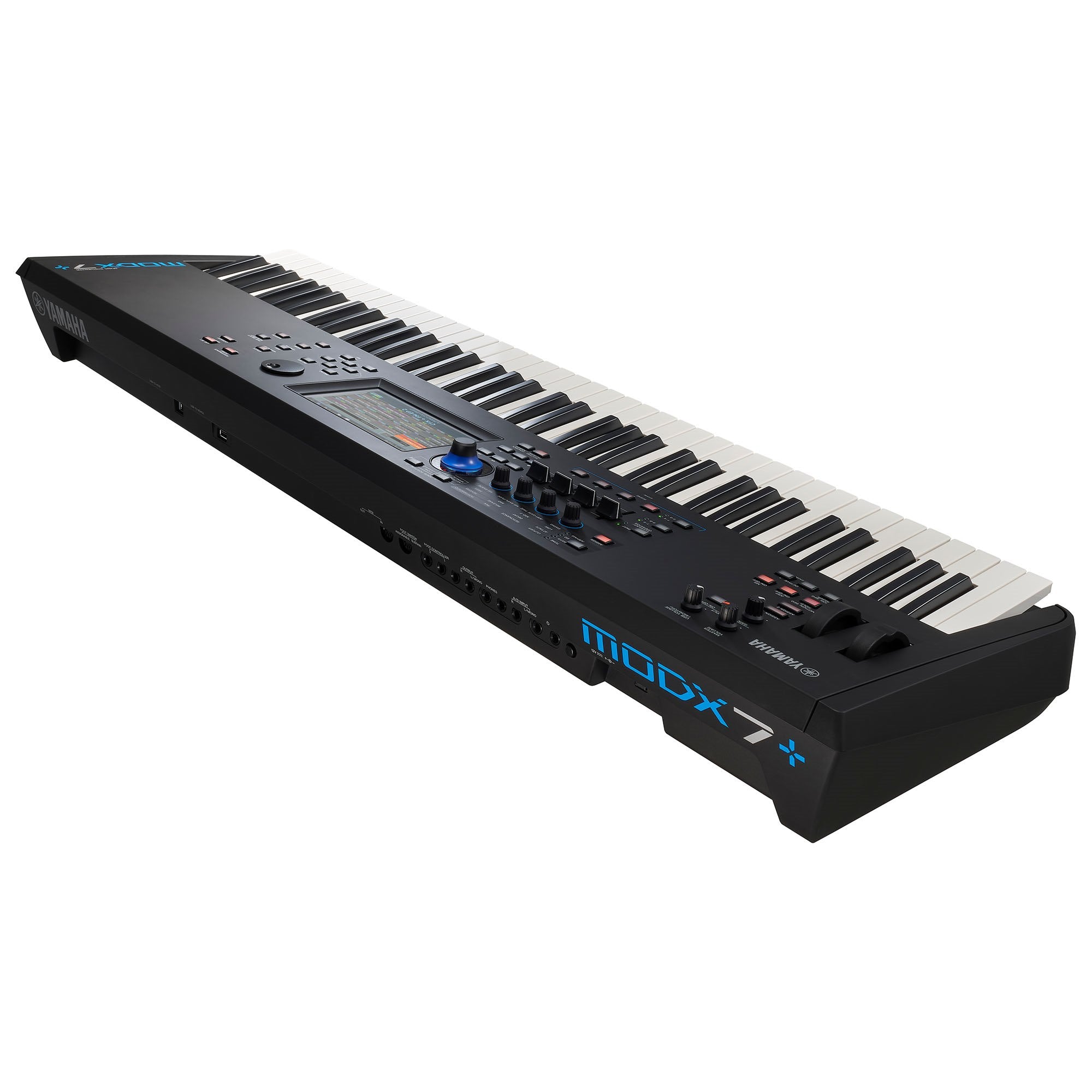

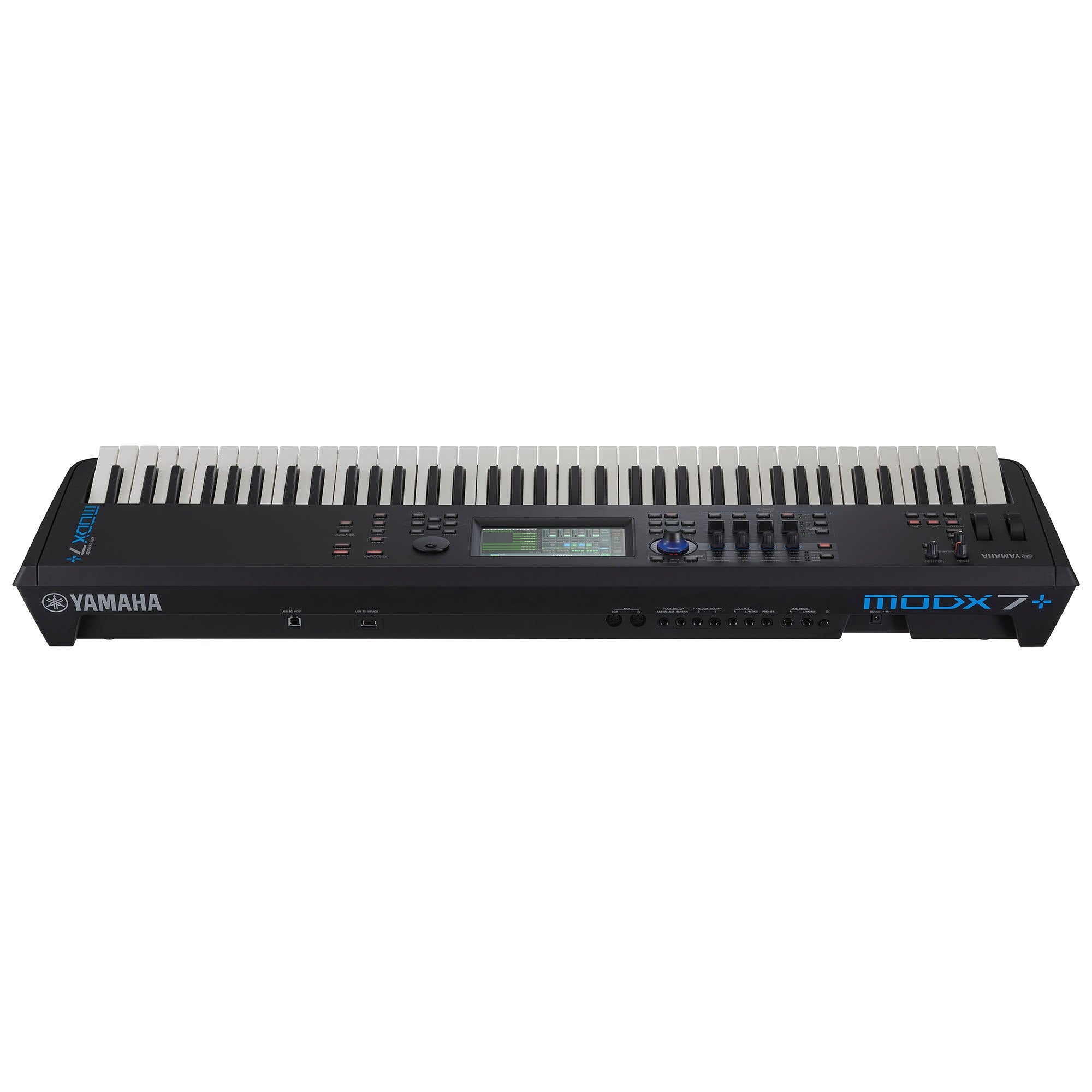

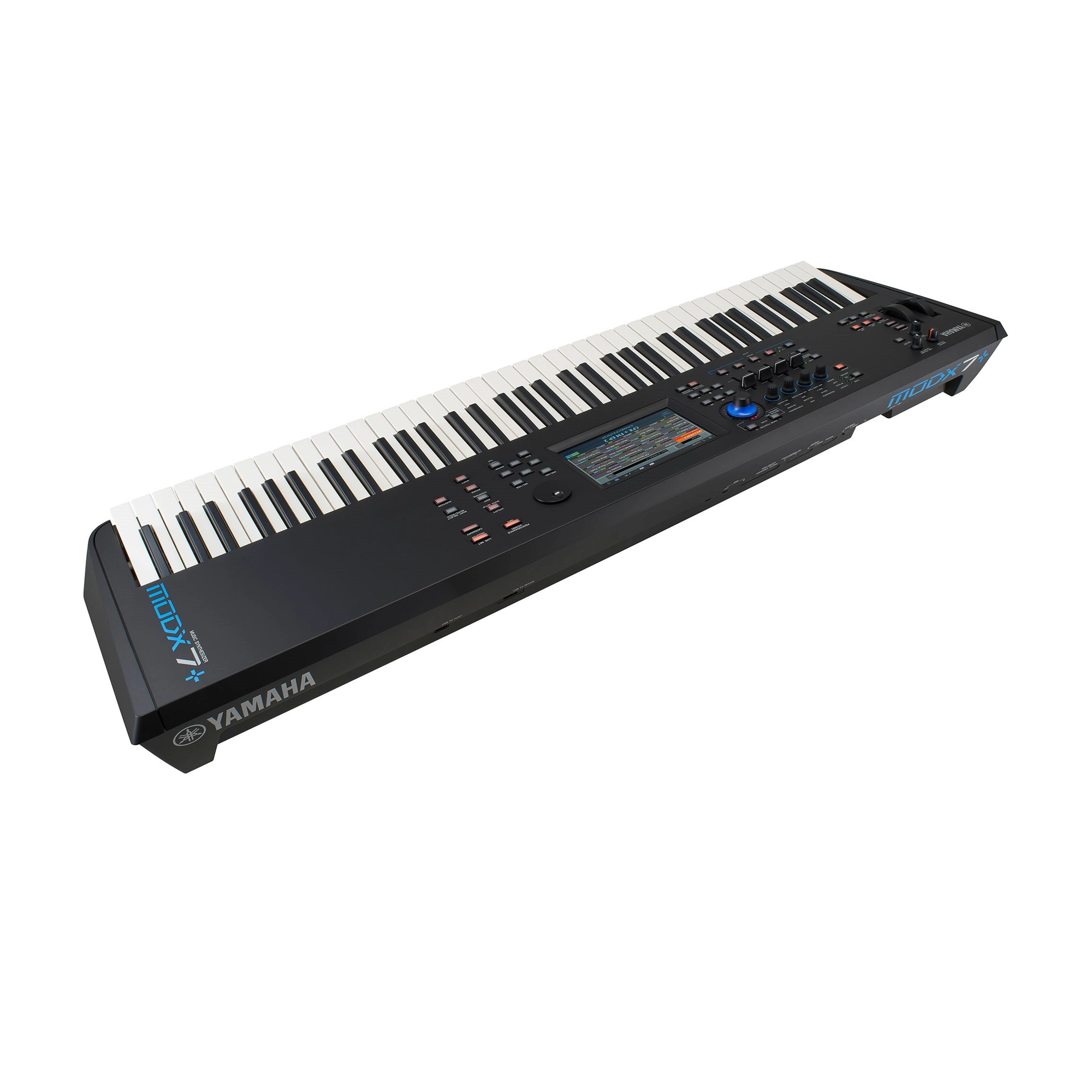

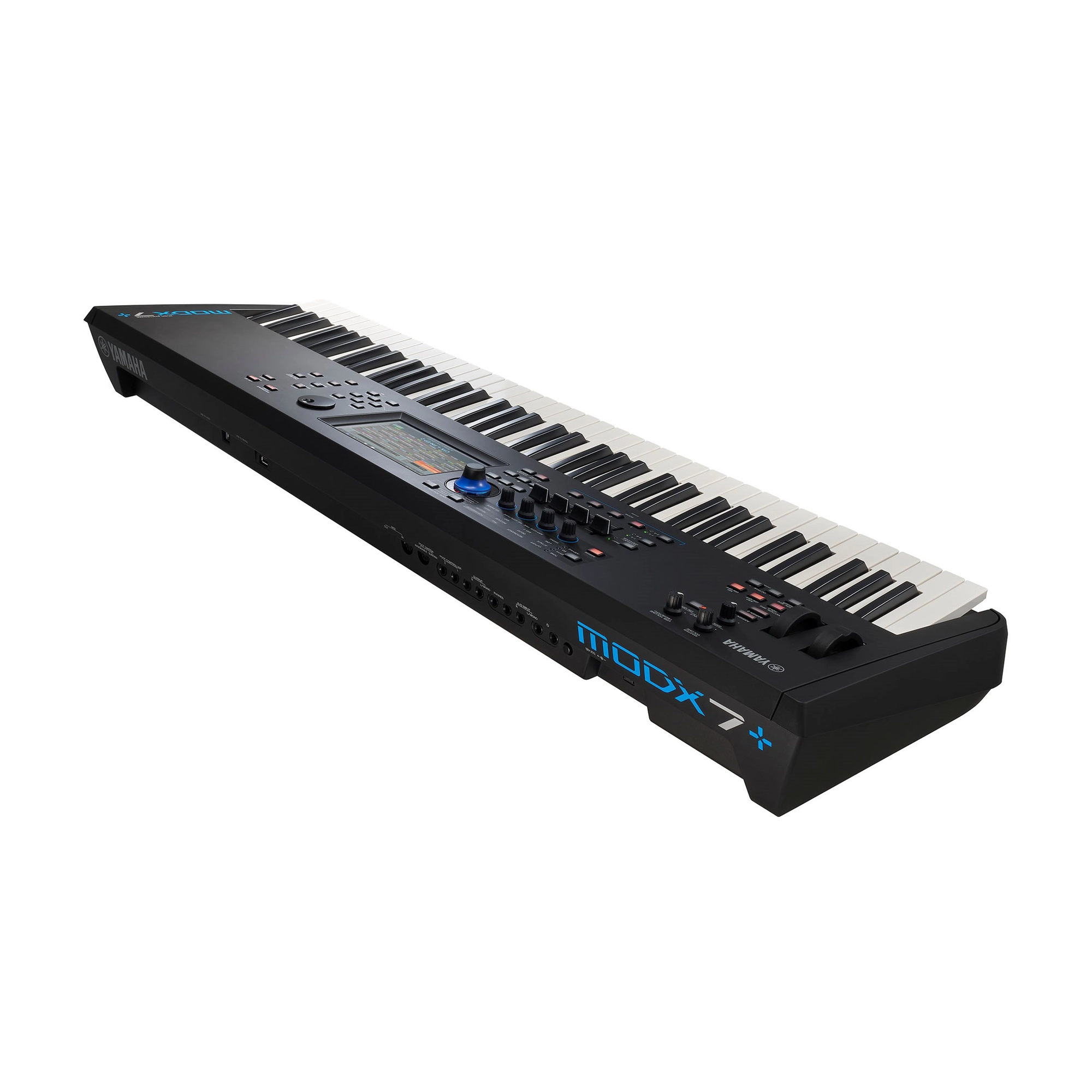

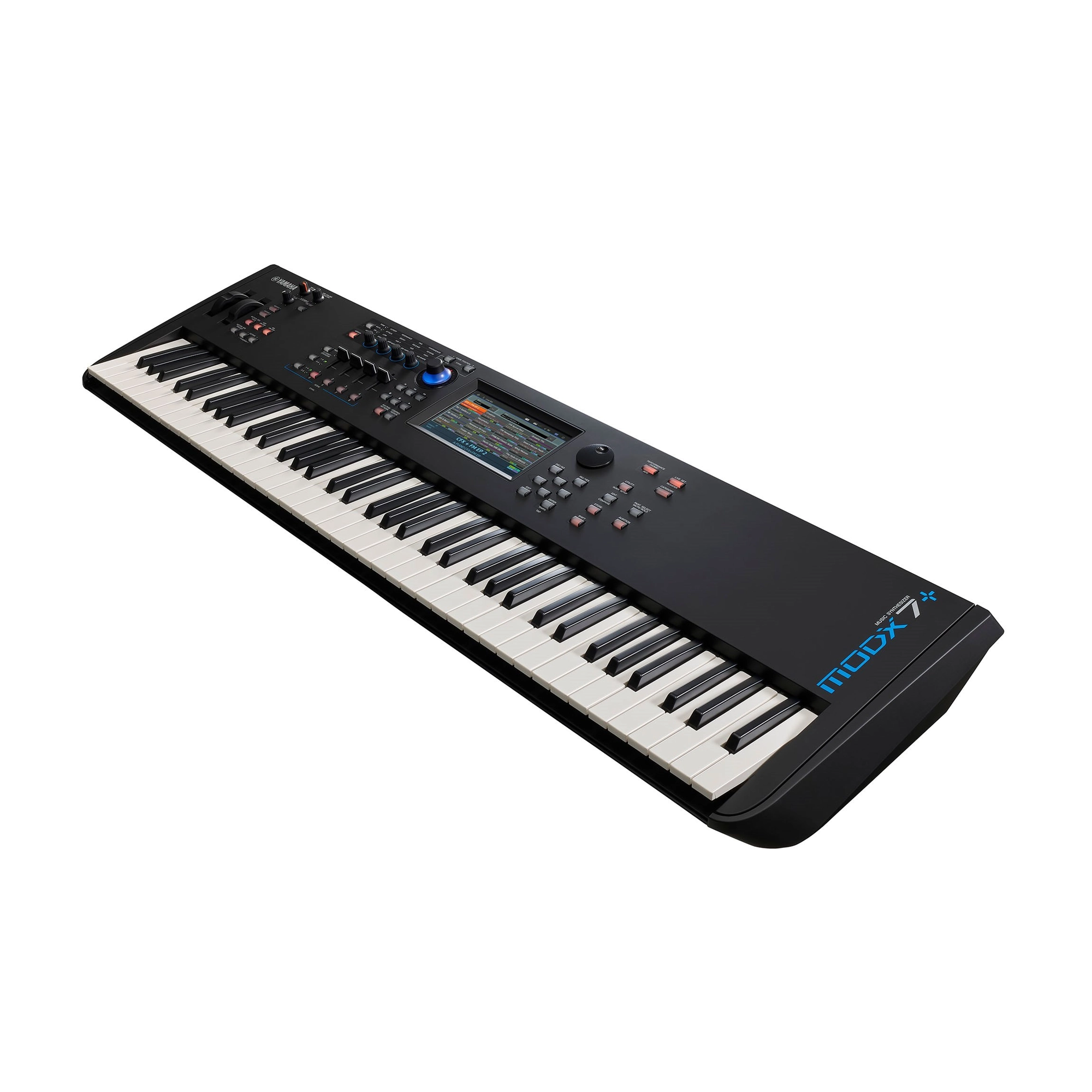

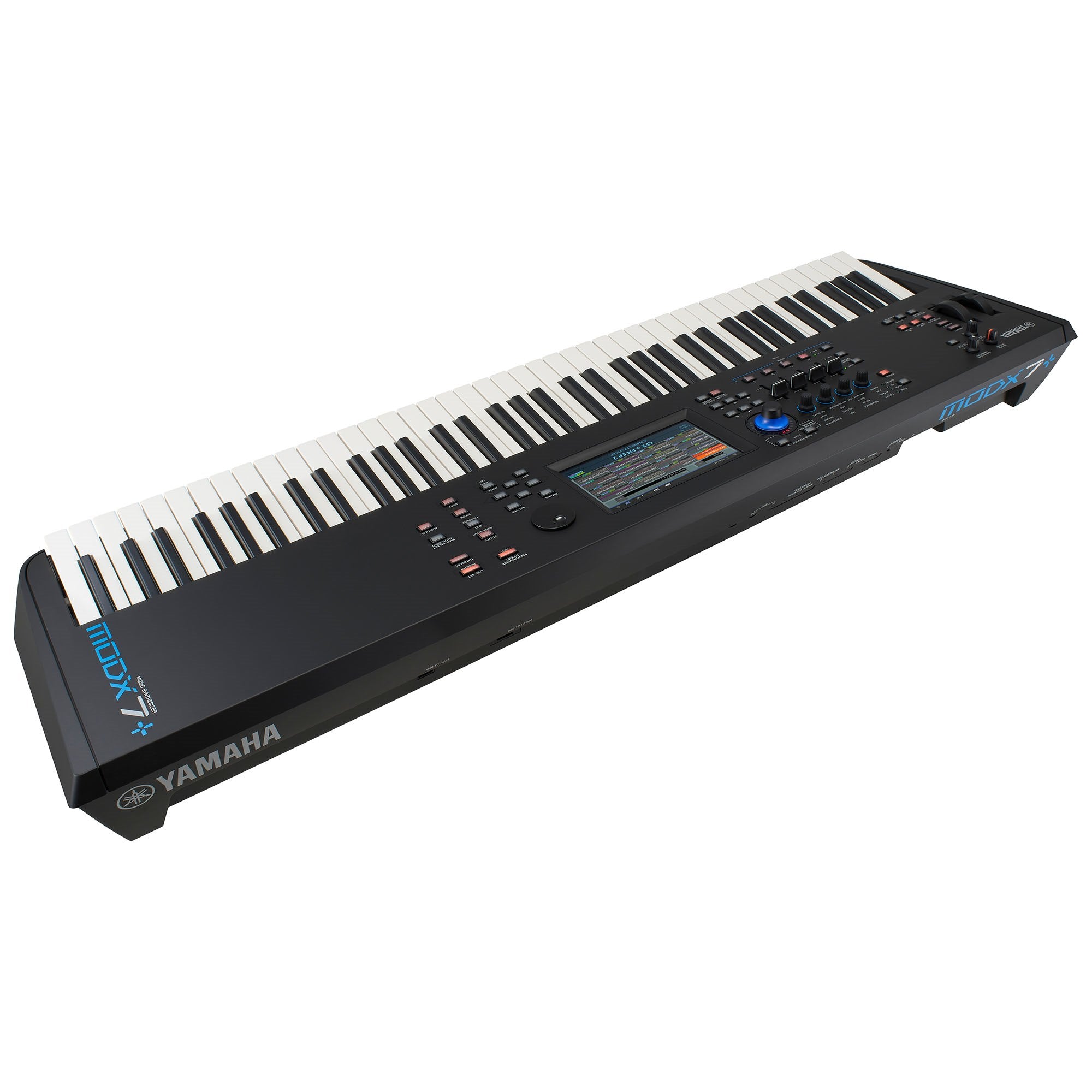

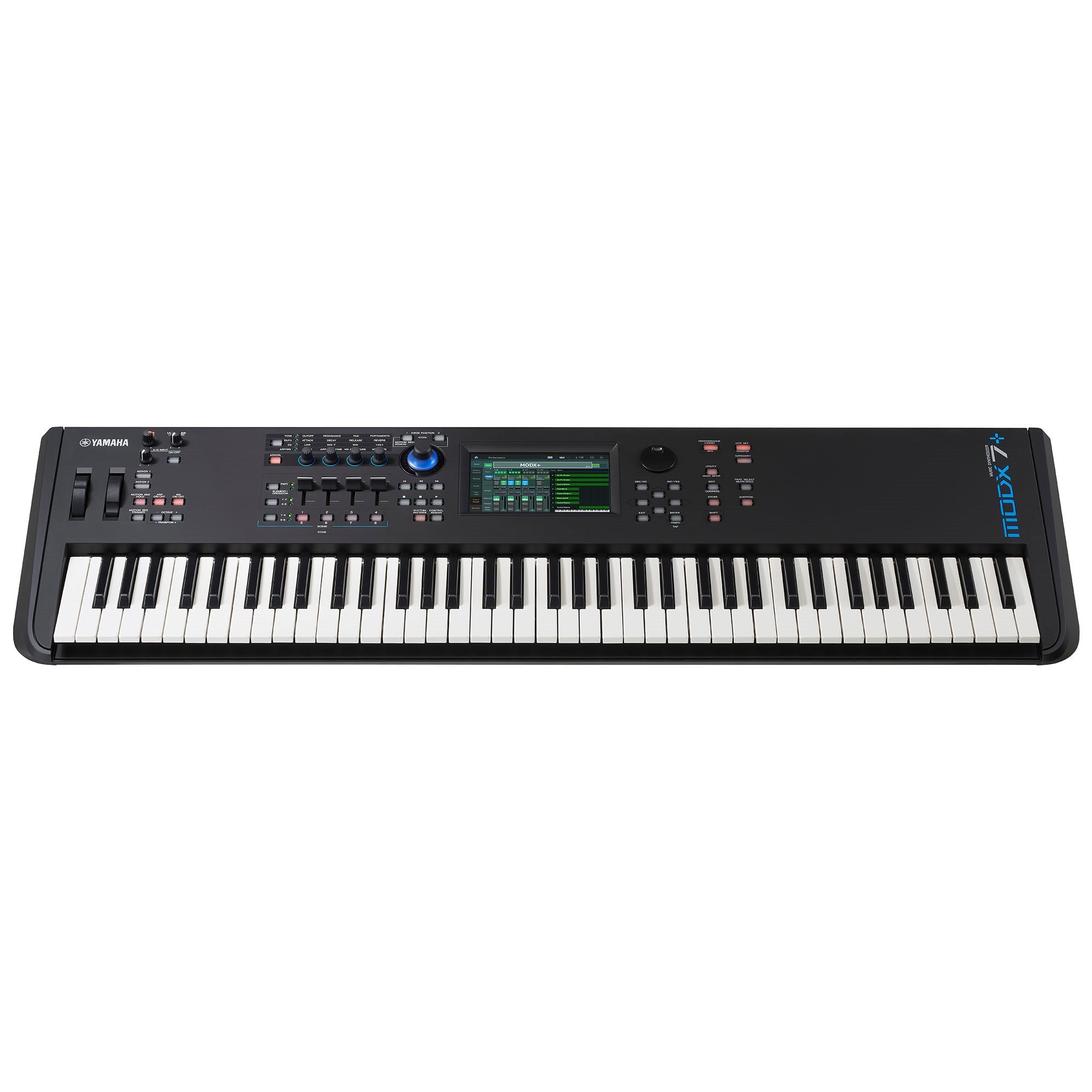

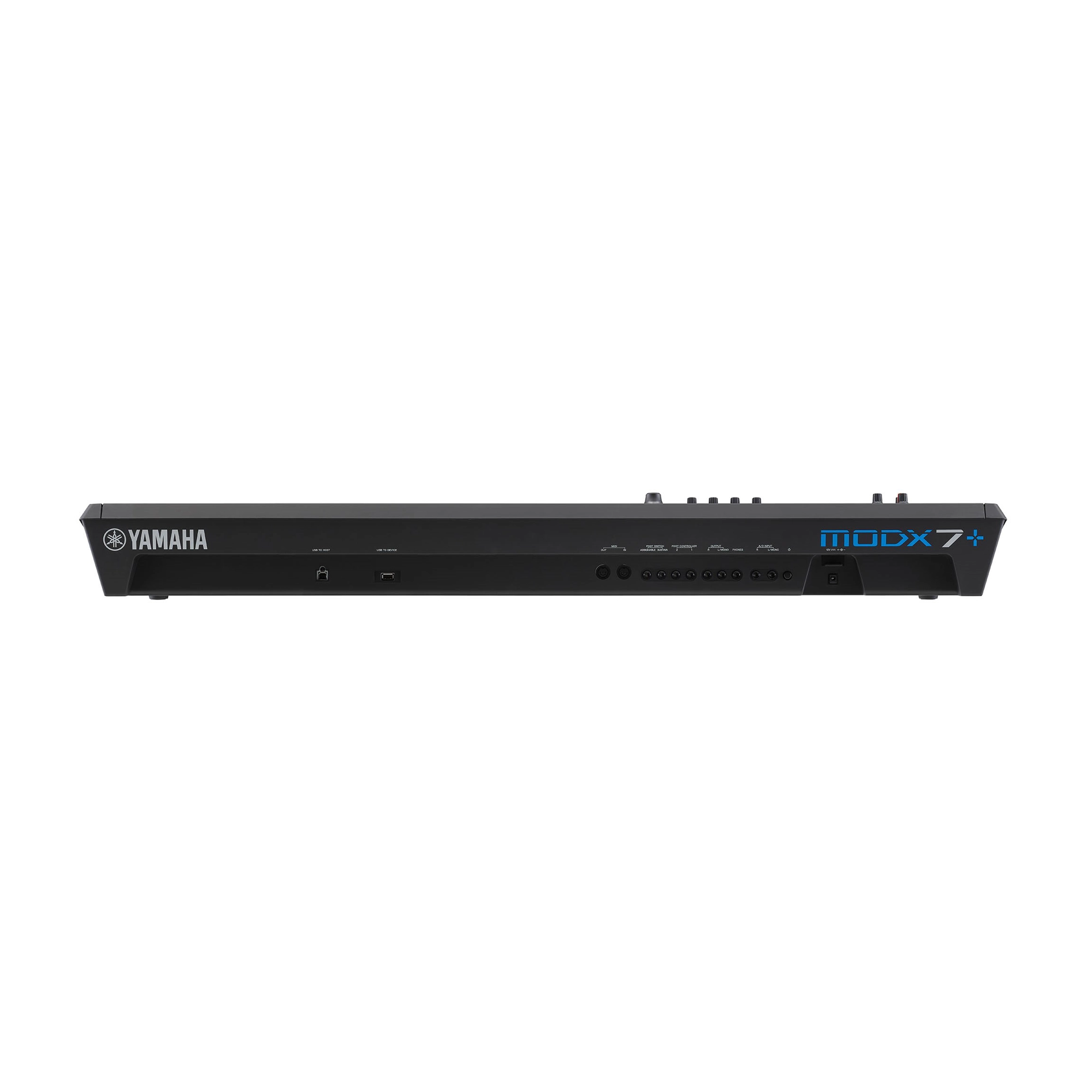

Yamaha MODX7+ 76 Semi-Weighted Key Synthesizer
SOUND
The most important element of any instrument is the sound. MODX+ makes all elements of your music sound amazing.
MODX+ uses the same technology that powers the flagship MONTAGE: 128 notes of AWM2 (Advanced Wave Memory 2) sample and synthesis polyphony for stunning emulative acoustic instruments, synth sounds and drums.
MODX+ also features 128 notes of FM-X (Frequency Modulation) polyphony - a unique, expressive, highly-programmable synthesis technology for dynamic, electro-modern music creation.
AWM2
The AWM2 engine is exclusive to Yamaha synthesizers and offers much more than just sample playback. Each of the 16 AWM2 Parts feature eight programmable synthesizers with 18 different filter types, amplitude, pitch and filter envelope generators, nine LFOs, 3-band EQ and a dedicated dual insert effect with Virtual Circuitry Modeling.
FM-X
Everything you love about the iconic DX7 meets the latest Yamaha innovations. FM-X produces classic ‘80s or cutting-edge EDM synthesizer sound with incredible dynamic range, power and fidelity. MODX+ goes well beyond the capabilities of the original DX7 with an 8-operator FM architecture, 128-note polyphony, many filter types and more. All with Motion Control for ever-evolving and changing textures to create sounds no one has ever heard before.
SMART MORPH
Smart Morph enables morphing between FM-X sounds. Its sophisticated A.I. algorithm creates an interactive morphing map from up to eight FM-X sounds. You can “play” this map from the touchscreen or use the Super Knob to move between two points. The result is a staggering number of interesting and interactive new sounds.
256-NOTE TOTAL POLYPHONY
MODX+ features 128-note stereo AWM2 polyphony and 128-notes of FM-X polyphony. Due to the unique architecture of MODX+ and MONTAGE, this polyphony is always available without latency or compromising other features.
Integrated Flash
Save your music in a flash. MODX+ includes 1.75GB of non-volatile, low latency user flash memory with high speed reading/writing for your own custom samples or synth libraries from here.
EFFECTS
MODX+ is packed with DSP innovation, power and sound quality to bring you everything from high-definition reverbs to detailed Virtual Circuit Modeling (VCM) effects. Get EDM sound with effects like Beat Repeat, Vinyl Break or Bit Crusher. Use the Spiralizer effect to create the auditory illusion of tone continuously rising or falling in pitch.
Add a compressor with sidechain for a modern “ducking” effect. Or go retro with vintage effects like Analog Delay, VCM Phaser or a variety of Amp Simulators.
Piano players will feel like they’re in heaven, or some other incredible performance space, with piano-focused effects like Damper Resonance and HD reverbs for a super-realistic piano experience.
A/D Input
A stereo A/D input allows you to bring external sources like analog synthesizers, vocals and other instruments into the MODX+ motion control system. Which means MODX+ control goes well beyond simple onboard effect processing. Control individual parameters with the physical controls or have MODX+ provide “invisible hands” using Motion Control. Add the Vocoder, Envelope Follower and Auto Beat Sync and it’s like the A/D input on MODX+ becomes an instrument unto itself.
Sidechain
Sidechain is a popular effect in modern dance music where a pad or other sustain part is “keyed” to the kick drum. When the kick drum plays, it ducks down the sustained part creating a “pumping” rhythmic effect.
Content
Beyond being an amazing synthesizer, MODX+ is an expandable content platform. Get new sounds for your MODX+ here.
SOUNDMONDO
Soundmondo is a social sound sharing network that lets you store and recall MODX+ and MONTAGE Performances and share them with other users. Each stored Performance can be rated, named and given a custom image from your photo library. The Soundmondo app for iOS lets you upload and download new Performances directly to MODX+ with an iOS device.
COMPATIBILITY
Out of the box, MODX+ gives you access to sounds made by our world- class sound designers and artists, including sounds from the MOTIF series as well as the legendary DX7. You'll have a massive sound library at your fingertips.
MOTIF XF/MOXF
MODX+ is directly compatible with MOTIF XS/XF Voices and Performances.
DX/TX
The free FM converter webapp on YamahaSynth.com makes it compatible with DX7, DX7II, TX802 and TX816 synthesizer content as well.
Bösendorfer
As part of the MODX+ introduction, Yamaha is pleased to offer an incredible Bösendorfer Imperial Premium Grand Piano download for FREE to all registered MODX+ owners. See below for more details.
DAW Integration
MODX+ Connect is a convenient tool which lets you transfer data between your computer and the MODX+. Song data created on the MODX+ can be transferred to your computer and the Performance data edited on the MODX+ can be saved as a file (.X7B) on the computer.
MODX+ Connect, based on Steinberg’s VST3 technology, works as a VST3 plug-in with the Cubase series. The MODX+ Connect works the same as other VST instrument software, allowing you to save the edited settings of the MODX+, or use them for another project.
MODX+ Connect also works as an AU plug-in. For AU compatible DAW software, refer to the separate Release Notes.
It can also be used as standalone software.
MULTI-CHANNEL USB AUDIO INTERFACE
As expected for modern computer-based music production, MODX+ features a professional 4-in/10-out, multi-channel USB audio interface. Coupled with two A/D inputs, MODX+ is a perfect centerpiece for any professional recording studio or live computer rig.
A single-cable connection replaces the need for an external audio interface.
iOS compatible
RHYTHM PATTERN
Drummer running late again? MODX+ Rhythm Pattern is like a built-in drum machine with easy access to thousands of patterns from a front panel button. Quickly add a rhythm when songwriting, practicing or waiting for the drummer to set up, or show up.
CONTROL
Every artist wants to sound unique. Empower your creativity, take control and stand out from the crowd. Bring the sophistication of music production automation to realtime live performance with Motion Control.
SUPER KNOB
The Super Knob is to shaping sound as a conductor is to an orchestra. It directs individual dynamic elements into a single musical expression. Like a conductor, the Super Knob can tell one player to turn up while another turns down. You can change the shape of notes from long to short, bright to dark or move a player from being right next to you to the back of the concert hall.
The Super Knob allows simultaneous control of up to 128 parameters in a single Performance. This means you can control mix functions like volume, pan and effect sends or detailed synth parameters like filters, LFOs and Operators.
That’s 128 parameters…SIMULTANEOUSLY!
You can even control the Super Knob with an FC7 foot controller making it easy to manipulate the sound when playing with both hands.
MOTION SEQUENCES
Motion Sequences are tempo-synchronized, completely customizable control sequences that can be assigned to virtually any synthesizer parameter and provide incredible new ways of creating sound.
Motion Sequences also have dedicated controls on the front panel making it easy to manipulate and change in real-time, providing incredible interactivity and expression.
ENVELOPE FOLLOWER
The Envelope Follower converts audio into a control source for control of virtually any synthesizer parameter. For example, a drum loop could drive effects parameters for a cool rhythm or a vocal recording could control multiple parameters for a “talking” synthesizer. The audio can even be a “live” source through the A/D input.
Audio Beat Sync
Audio Beat Sync (ABS) detects the beat of an external device like an electronic drum kit, drum machine or audio player plugged into the A/D input and synchronizes the MODX+ Arpeggiator, Motion Sequencer or Songs to the tempo of the external input.
Rubber coated PB and MW
Just like the flagship MONTAGE, MODX+ has rubber-coated pitch and modulation wheels for a premium feel when performing.
MOBILITY
Designed for musicians on the go, MODX+ is compact, lightweight and mobile.
Lightweight
The MODX6+ weighs in at 14.6 lbs, the MODX7+ at 16.3 lbs and the 88-note weighted Graded Hammer Action MODX8+ comes in at a svelte 30.4 lbs.
