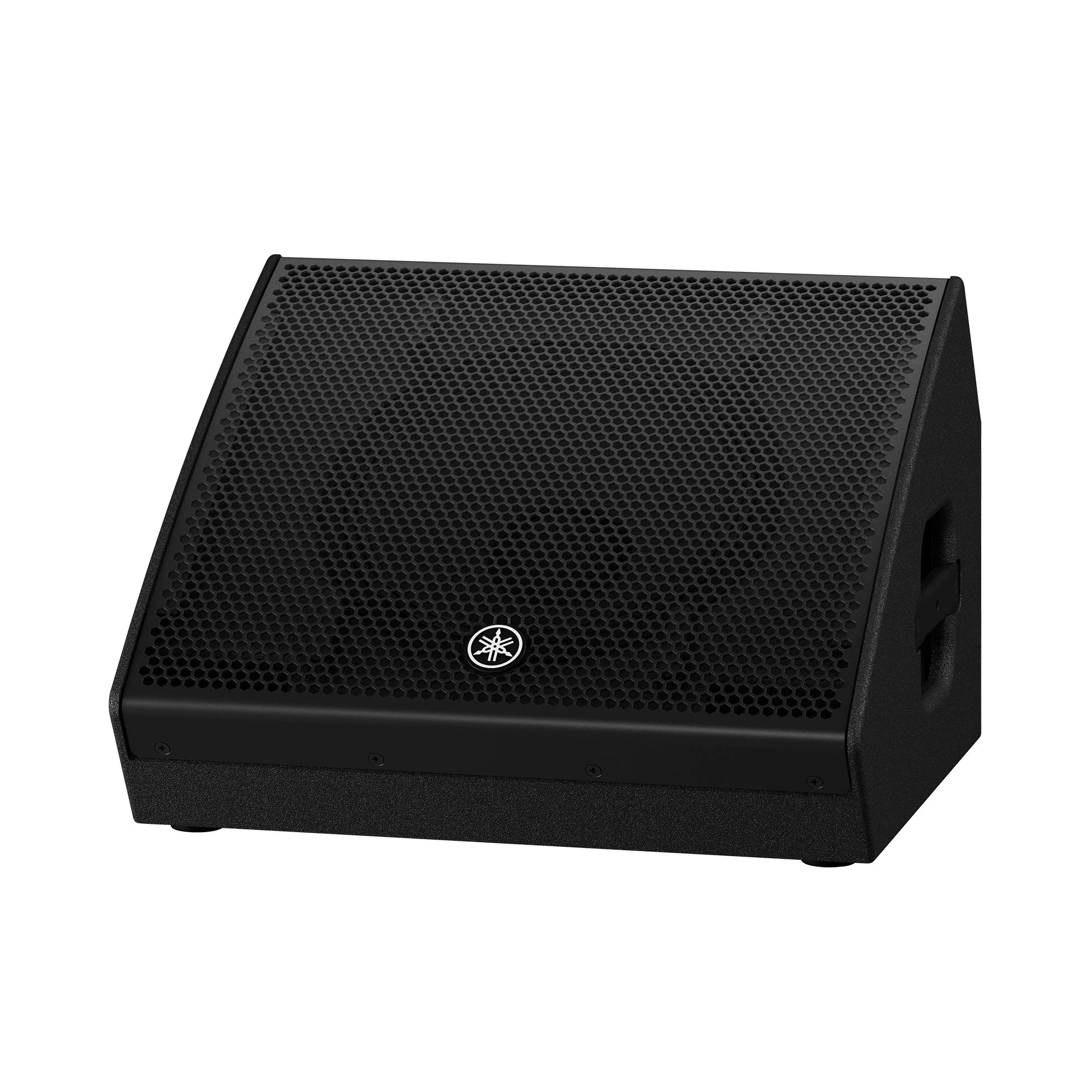

Yamaha DHR12M 1000W 12-Inch Powered Loudspeaker
Performance. Optimized.
The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?
- Powered: Yes
- Power Configuration: Bi-amped
- LF Driver Size: 15" woofer
- HF Driver Size: 1" High-frequency compression driver
- LF Driver Power Amp: 800W
- HF Driver Power Amp: 200W
- Total Power: 1000W Class D

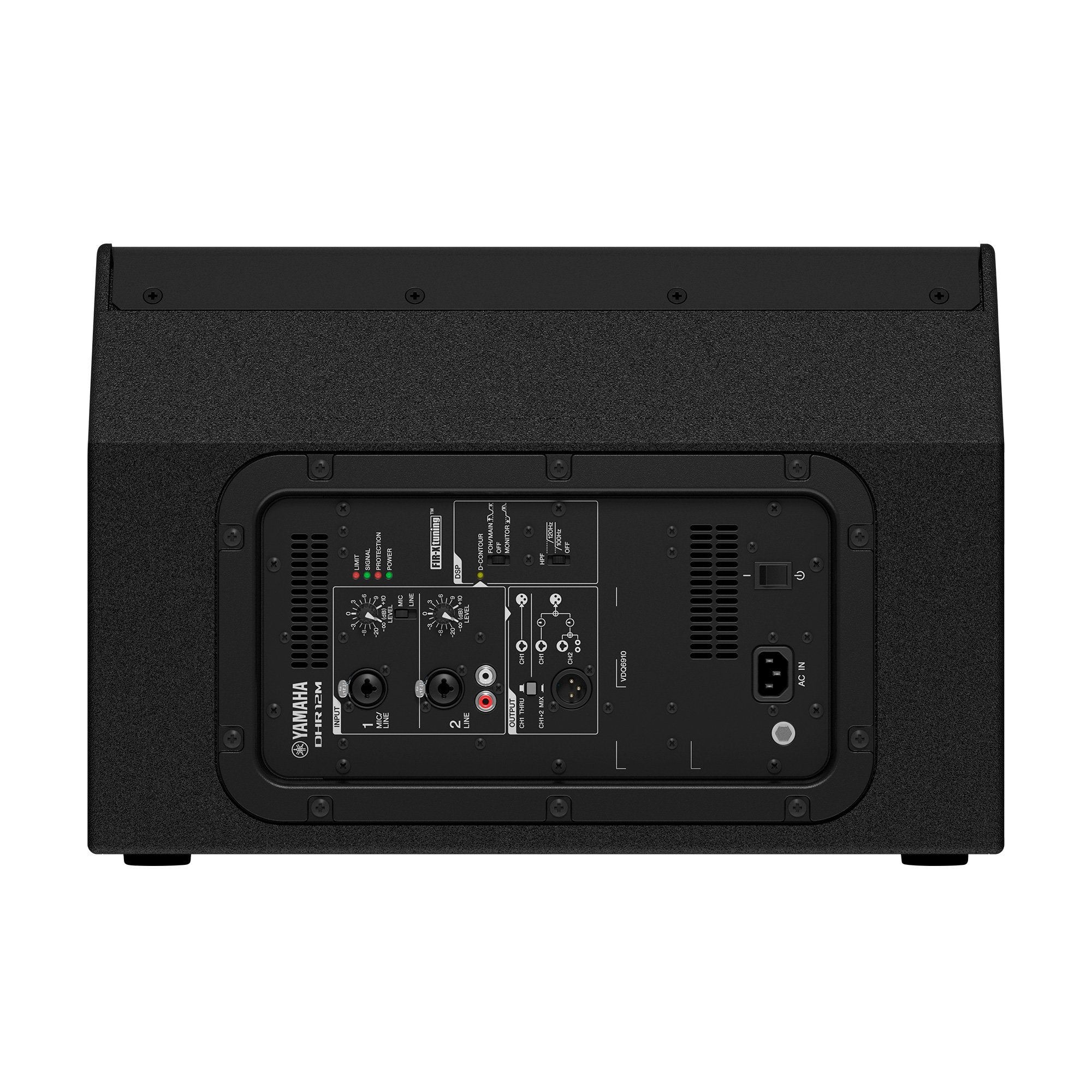

- Inputs: 1 x XLR-1/4" combo, Dual RCA stereo
- Outputs: 1 x XLR
- Frequency Range: 44Hz-20khz (-10 dB)
- Maximum Peak SPL: 131 dB SPL @ 1m
- Horizontal Coverage Angle: 90°
- Vertical Coverage Angle: 60°
- Signal Processing: 48-bit DSP
- Enclosure Material: Plywood with Polyurea coating
- Mounting Options: Pole
- Power Source: Standard IEC AC cable
- Height: 27.25"
- Width: 17"
- Depth: 16"
- Weight: 52.8 lbs.
- Manufacturer Part Number: DHR15
