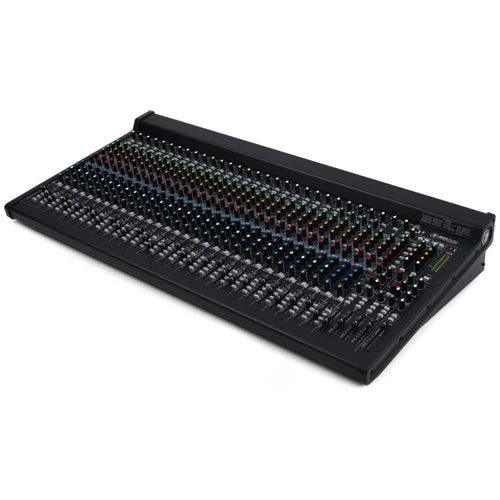

Mackie 3204VLZ4 32-Channel Analog Mixer
Mackie 3204VLZ4 32-Channel Analog Mixer
Mackie 3204VLZ4 32-Channel Analog Mixer

Mackie 3204VLZ4 32-Channel Analog Mixer

Mackie
SKU: 2040770-00
Sale price$1,599.99 USD Regular price$1,999.99 USD

VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.

MACKIE ANALOG PERFECTION, AND LOTS OF IT

The largest in the VLZ4 lineup, the 3204VLZ4 is equipped to make live sound in your venue, club, house of worship, and beyond sound better than ever. With 32 channels of classic analog Mackie sound signature, Onyx preamps, and plenty of routing options, this is the perfect step up to professional analog sound for your production.

FEATURES:

  • 28 boutique-quality Onyx mic preamps
  • Ultra-wide 60dB gain range
  • 128.5 dB dynamic range
  • +22 dBu line input handling
  • Extended frequency response
  • Distortion under 0.0007% (20Hz – 50kHz)
  • Improved RF rejection perfect for broadcast applications
  • Phantom power for condenser mics
  • Dedicated inline channel compression for critical inputs (ch. 25-28)
  • 28 high-headroom line inputs with dedicated inserts
  • Level, pan, solo and overload/mute LEDs on each channel
  • 3-band EQ with sweepable midrange
  • 18 dB/oct 100Hz low-cut filter on mic input channels
  • 4 subgroups featuring dedicated inline compressors for total dynamic control
  • 6 aux sends with inserts, pre/post fader and internal/external FX send options
  • 2 stereo returns and 4 group outs with inserts
  • Dual 32-bit RMFX+™ processors featuring 24 “Gig Ready” reverbs, choruses and tap delay for live applications
  • Integrated 4x2 24-bit USB interface
  • Stream subgroups or master L/R to your PC or Mac for recording
  • Use your favorite plug-in live via auxes 5/6
  • Convenient stereo return to mains for music playback or return to channel to implement EQ, auxes and more
  • PFL/AFL solo modes
  • 60mm long-wearing log-taper faders
  • High-resolution 12-segment stereo meters
  • Sealed rotary control resist dust and grime
  • “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
  • High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
  • Universal power supply for worldwide use

SPECS:

  • Type: Analog
  • Channels: 32
  • Computer Connectivity: USB (4 x 2)
  • A/D Resolution: 24-bit
  • Faders: 35 x 60mm Throw

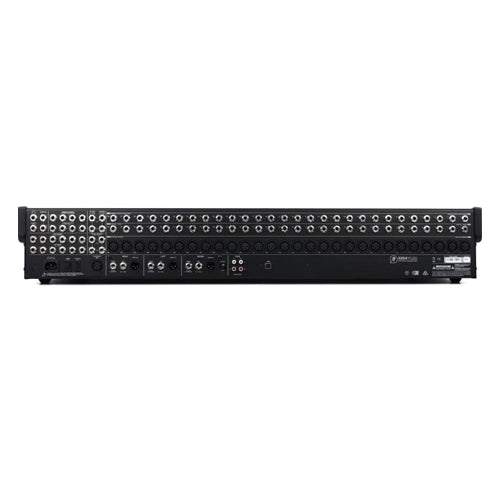

  • Inputs - Mic Preamps: 28 x XLR
  • Phantom Power: 28
  • Inputs - Line: 32 x TRS (28 x Mono, 2 x Stereo Pairs)
  • Inputs - Other: 2 x RCA (Tape)
  • Outputs - Main: 2 x XLR (Stereo), 1 x XLR (Mono)
  • Outputs - Other: 2 x RCA (Tape), 2 x TRS (Monitor, Stereo), 1 x TRS (Monitor, Mono)
  • Aux Sends: 4 x Pre/Post, 2 x Post/FX
  • Send/Return I/O: 6 x TRS (Send), 4 x TRS (Stereo Return)
  • Busses/Groups: 4 x Bus
  • Channel Inserts: Yes
  • Headphones: 1 x 1/4"
  • USB: 1 x Type B
  • Talkback: Yes
  • EQ Bands: 3-band, Sweepable Mid
  • Effects: Yes
  • Power Source: Standard IEC AC cable
  • Height: 6"
  • Width: 38"
  • Depth: 19.1"
  • Weight: 39 lbs.
