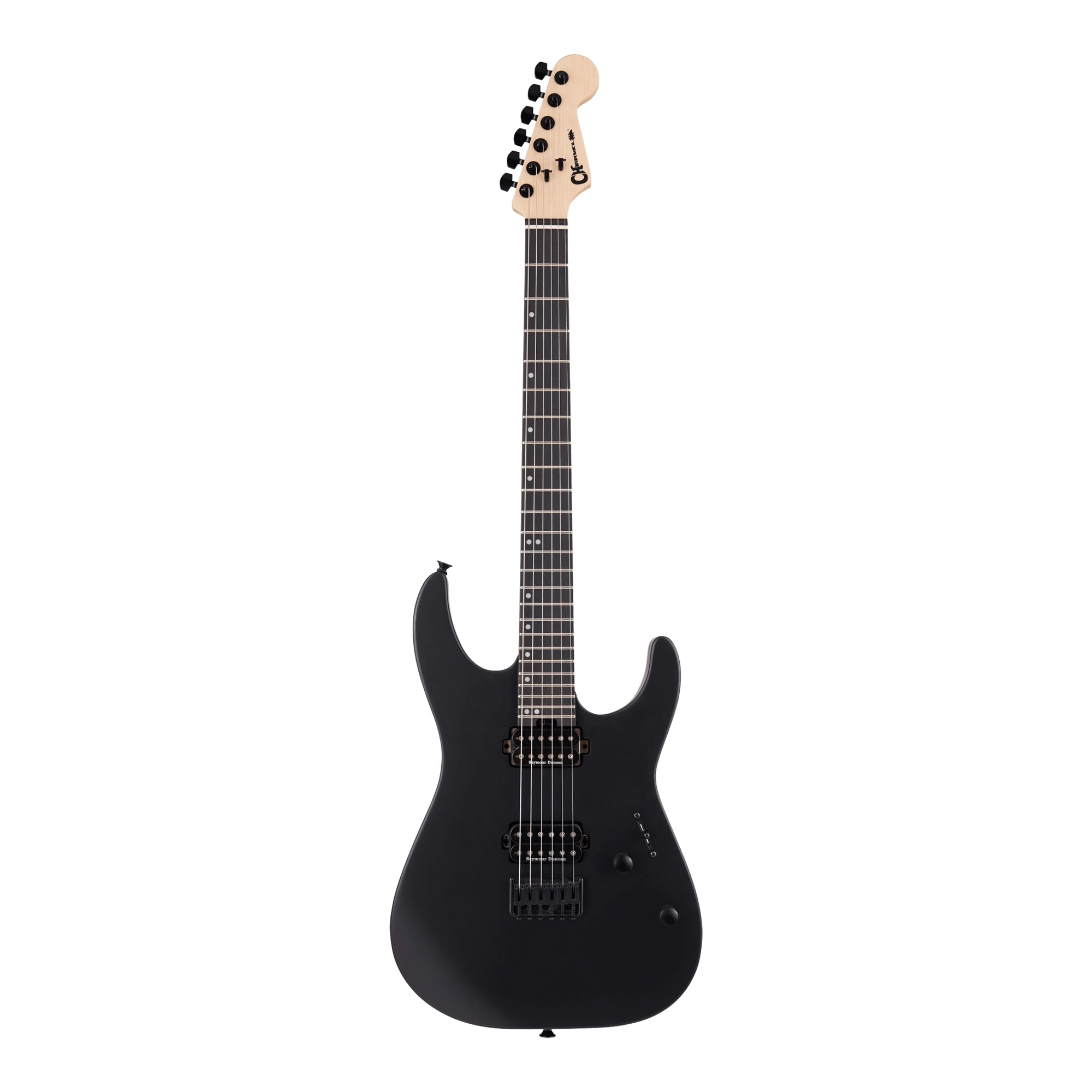

Charvel Pro-Mod DK24 Hh Ht Electric Guitar - Satin Black
Charvel’s Pro-Mod DK24 HH HT E is a perfect fusion of elegance and high performance, designed for a new breed of player whose musical vision and versatility knows no boundaries.

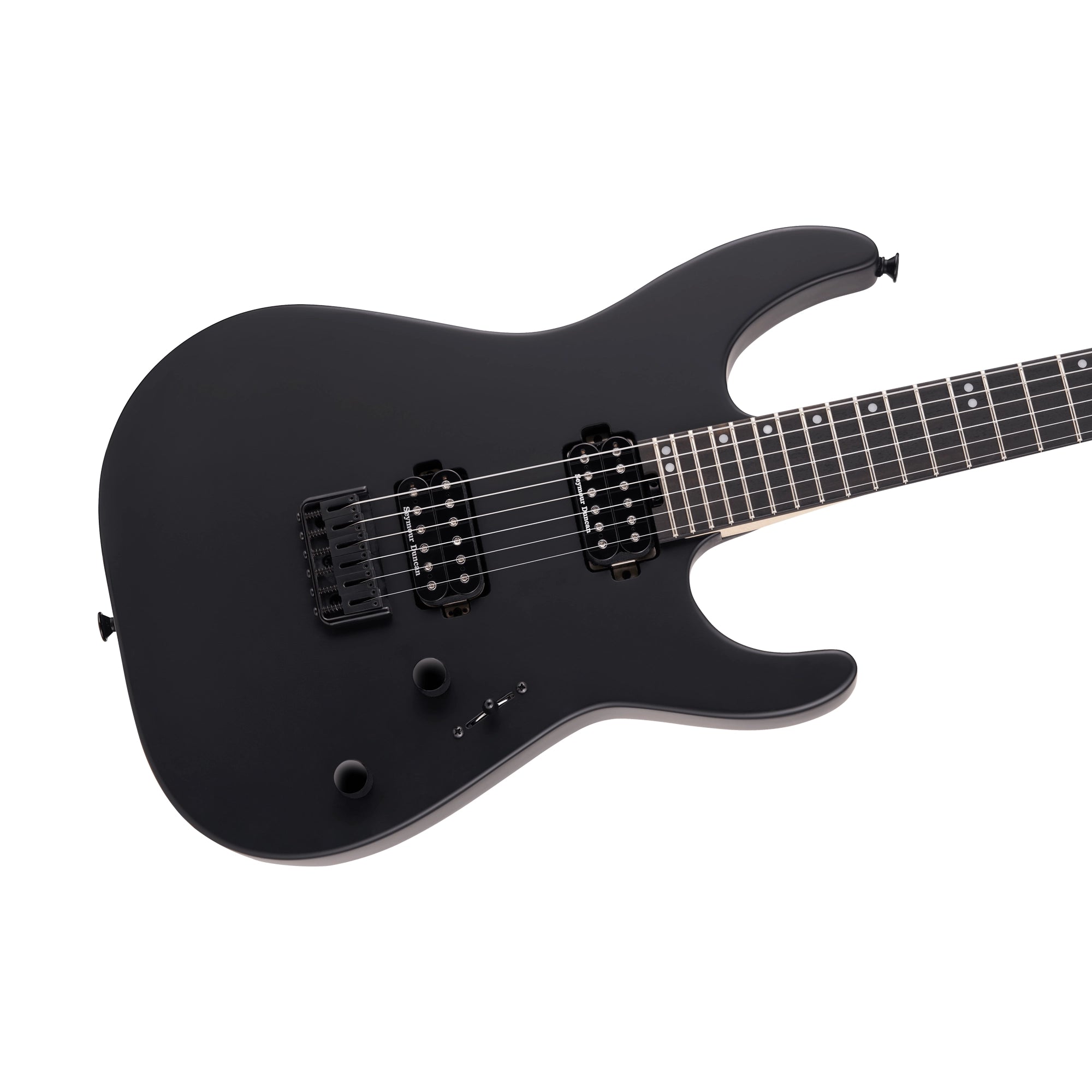

Loaded with premium features, this DK24 model features a sleek Dinky™ body constructed from alder with a sculpted shredder’s cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on maple neck features graphite reinforcement for rock-solid stability, a silky-smooth hand-rubbed satin urethane finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo frets and offset pearloid dot inlays.
This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan® Full Shred™ SH-10B bridge pickup and direct mount Seymour Duncan Alnico II Pro™ APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Other premium modern features include a five-way blade pickup switch, dome-style knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Charvel® HT6 string-through-body hardtail bridge, Charvel-branded die-cast locking tuners and more.
Blending sophisticated style with assertive tone, Pro-Mod DK24 HH HT E comes in Satin Black with black hardware.
GENERAL
| Model Number | 2969851568 |
|---|---|
| Series | Pro-Mod |
| Color | Satin Black |
| Number of Strings | 6 |
| Orientation | Right-Hand |
ELECTRONICS
| Bridge Pickup | Seymour Duncan® Full Shred™ SH-10B |
|---|---|
| Neck Pickup | Seymour Duncan® Alnico II Pro™ APH-1N |
| Pickup Color | Black |
| Controls | Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone |
| Pickup Switching | 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup |
| Pickup Configuration | HH |
HARDWARE
| Bridge | Charvel® HT6 String-Through-Body Hardtail |
|---|---|
| Hardware Finish | Black |
| Tuning Machines | Charvel®-Branded Die-Cast Locking |
| Control Knobs | Dome-Style |
| Switch Tip | Black |
| Saddle Height Wrench | Yes |
NECK
| Neck Material | Maple |
|---|---|
| Neck Construction | Bolt-On with Graphite Reinforcement |
| Neck Finish | Hand-Rubbed Satin Urethane |
| Neck Shape | Speed Neck with Rolled Fingerboard Edges |
| Neck Binding | None - Rolled Fingerboard Edges |
| Scale Length | 25.5" (64.77 cm) |
| Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
| Fingerboard Material | Ebony |
| Number of Frets | 24 |
| Fret Size | Jumbo |
| Nut Material | Black Plastic |
| Nut Width | 1.6875" (42.86 mm) |
| Position Inlays | Offset Pearloid Dot |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| Truss Rod Wrench | Yes |
| String Trees | Fender® Standard String Guide |

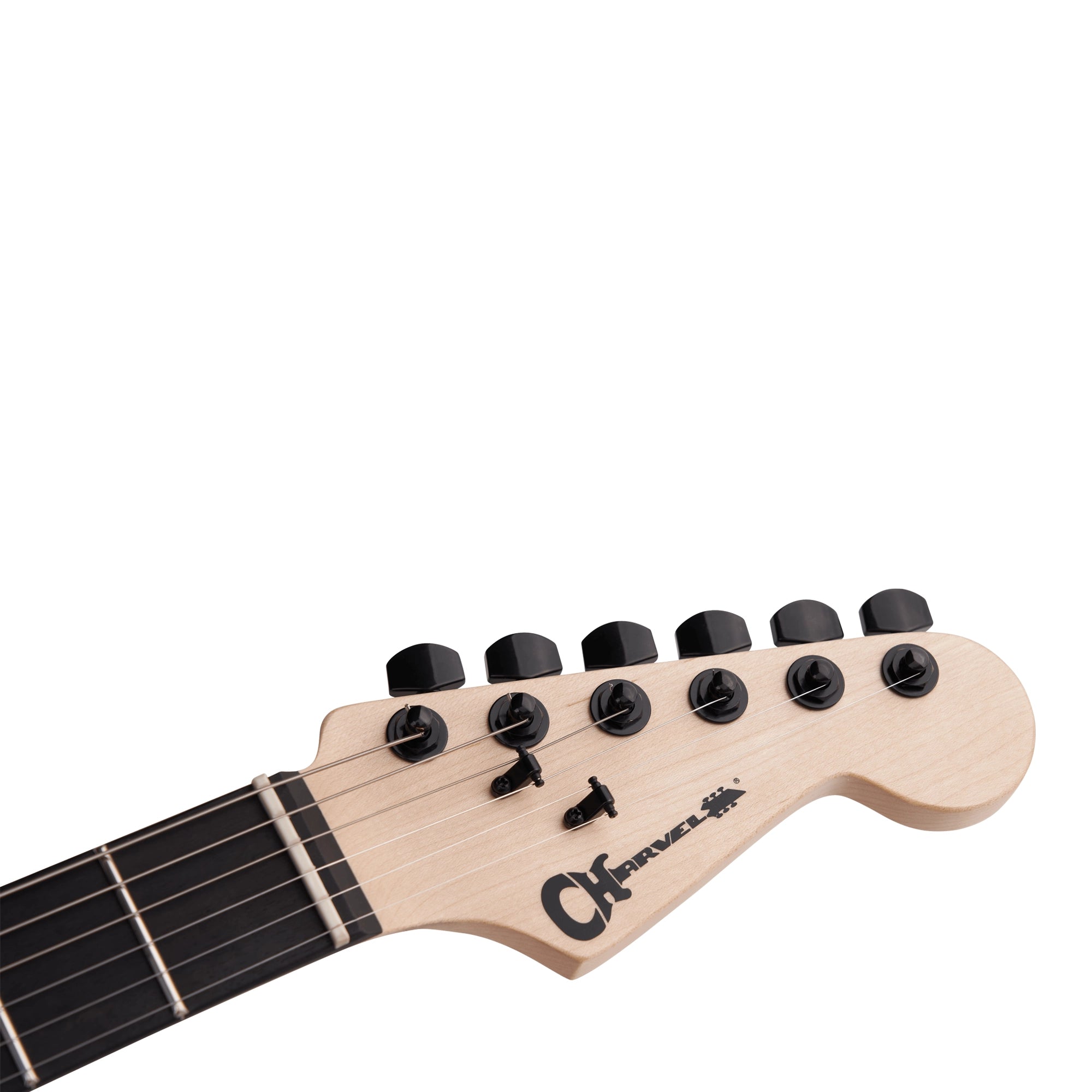

| Headstock | Licensed Fender® Stratocaster® |
| Neck Plate | None - 4-Bolt Sculpted Heel |
MISCELLANEOUS
| Strings | Nickel Plated Steel (.009-.042 Gauges) |
|---|---|
| Strap Buttons | Standard |
| Other Features | Beveled Jack |
