Yamaha CHR15 1000W 15" Passive Speaker
Yamaha CHR15 1000W 15" Passive Speaker
Yamaha CHR15 1000W 15" Passive Speaker
Yamaha CHR15 1000W 15" Passive Speaker

Yamaha CHR15 1000W 15" Passive Speaker

Disponible
Yamaha
SKU: CHR15
Precio de oferta$669.99 USD Precio normal$799.99 USD

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 15-inch LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Performance. Optimized.

The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

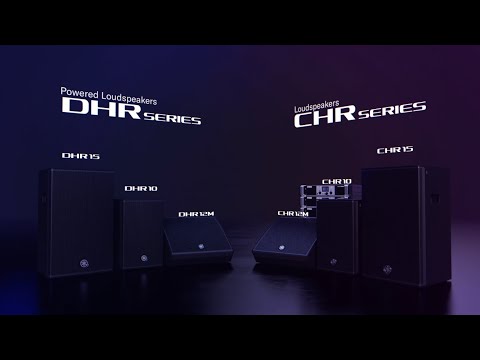

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

Features:

  • 2-way passive loudspeaker with 1.4-inch HF and 15-inch LF drivers
  • 1000W handling capabilities
  • 49Hz–20kHz frequency range with 125dB SPL
  • Dual 35mm pole sockets allow for downtilt from 0° to 7°
  • 3 rigging points for 10mm eyebolts
  • 90° x 60° dispersion from a vertical position
  • Compatible with Yamaha PX Series amplifier processor tuning settings (amplifier sold separately)
  • Made from durable yet lightweight plywood housing for excellent acoustic performance

Specs:

  • Powered: No
  • LF Driver Size: 1 x 15" driver
  • HF Driver Size: 1" HF horn
  • Impedance: 8 ohms
  • Power Rating: 250W Continuous, 500W RMS
  • Total Power: 1000W Peak
  • Inputs: 1 x speakON NL4
  • Outputs: 1 x speakON NL4 (thru)
  • Frequency Range: 49Hz-20kHz (-10 dB)
  • Maximum Peak SPL: 125 dB SPL
  • Enclosure Material: Plywood with Black Polyurea Paint
  • Mounting Options: Pole, Fly
  • Height: 27.2"
  • Width: 17"
  • Depth: 15.9"
  • Weight: 48.5 lbs.
