Yamaha CHR12M 1000W 12" Passive Speaker
Yamaha CHR12M 1000W 12" Passive Speaker
Yamaha CHR12M 1000W 12" Passive Speaker
Yamaha CHR12M 1000W 12" Passive Speaker

Yamaha CHR12M 1000W 12" Passive Speaker

Disponible
Yamaha
SKU: CHR12M
Precio de oferta$599.99 USD Precio normal$799.99 USD

The CHR12M is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR12M offers best-in-class sound quality and durability.

  • The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
  • A pole socket for use on a stand
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Performance. Optimized.

The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

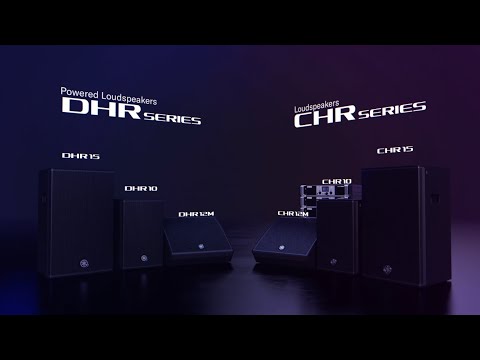

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

Features:

  • 2-way passive loudspeaker with 1.75-inch HF and 12-inch LF drivers
  • 1000W handling capabilities
  • 61Hz–20kHz frequency range with 123dB SPL
  • 90° x 90° dispersion
  • 57° floor monitor angle
  • Compatible with Yamaha PX Series amplifier processor tuning settings (amplifier sold separately)
  • Made from durable yet lightweight plywood housing for excellent acoustic performance
  • The perfect floor monitor
  • 35mm pole socket for use with stands

Specs:

  • Powered: No
  • Power Configuration: 2-way
  • LF Driver Size: 1 x 12" Cone, 1 x 2.5" Voice Coil
  • HF Driver Size: 1 x 1.75" Compression Driver
  • Impedance: 8 ohms
  • Power Rating: 250W Continuous, 500W RMS
  • Total Power: 1000W Peak
  • Inputs: 2 x speakON
  • Frequency Range: 61Hz-20kHz (-10 dB)
  • Crossover Frequency: 1.5kHz
  • Maximum Peak SPL: 123dB
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 90 Degrees
  • Enclosure Material: Plywood with Black Polyurea Coating
  • Mounting Options: Pole, Floor Wedge
  • Height: 13.5" (with rubber feet)
  • Width: 19.75"
  • Depth: 18"
  • Weight: 34.3 lbs.
