Yamaha CHR10 700W 10" Passive Speaker
Yamaha CHR10 700W 10" Passive Speaker
Yamaha CHR10 700W 10" Passive Speaker
Yamaha CHR10 700W 10" Passive Speaker

Yamaha CHR10 700W 10" Passive Speaker

Disponible
Yamaha
SKU: CHR10
Precio de oferta$479.99 USD Precio normal$619.99 USD

The CHR10 is a 2-way loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha’s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
  • Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
  • A pole socket for use on a stand
  • Rigging points for use with eye bolts
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Performance. Optimized.

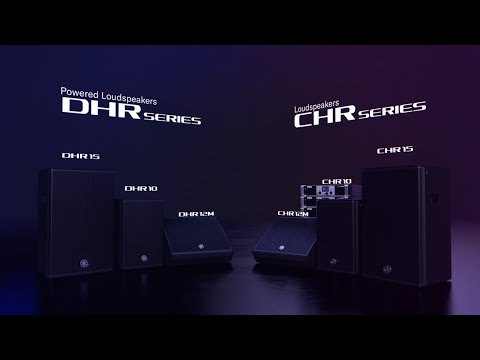

The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

Features:

  • 2-way passive loudspeaker with 1.4-inch HF and 10-inch LFdrivers
  • 700W handling capabilities
  • 55Hz–20kHz frequency range with 122dB SPL
  • Rotatable horn for vertical or horizontal installation
  • 90° x 60° dispersion from a vertical position
  • Compatible with Yamaha PX Series amplifier processor tuning settings (amplifier sold separately)
  • Made from durable yet lightweight plywood housing for excellent acoustic performance
  • Mounts to the UB-DXRDHR10 U-bracket (sold separately) for fixed installation
  • 35mm pole socket for use with stands

Specs:

  • Powered: No
  • Power Configuration: 2-way
  • LF Driver Size: 1 x 10" Cone, 1 x 2" Voice Coil
  • HF Driver Size: 1 x 1.4" Compression Driver
  • Impedance: 8 ohms
  • Power Rating: 175W (noise), 350 (PGM)
  • Total Power: 700W max
  • Inputs: 1 x speakON
  • Outputs: 1 x speakON (thru)
  • Frequency Range: 55Hz-20kHz (-10 dB)
  • Crossover Frequency: 2.5kHz
  • Maximum Peak SPL: 122dB
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 60 Degrees
  • Enclosure Material: Plywood, Black Polyurea Coating
  • Mounting Options: 1.37" Pole
  • Height: 19.5" (with rubber feet)
  • Width: 12"
  • Depth: 11.75"
  • Weight: 30.1 lbs.
