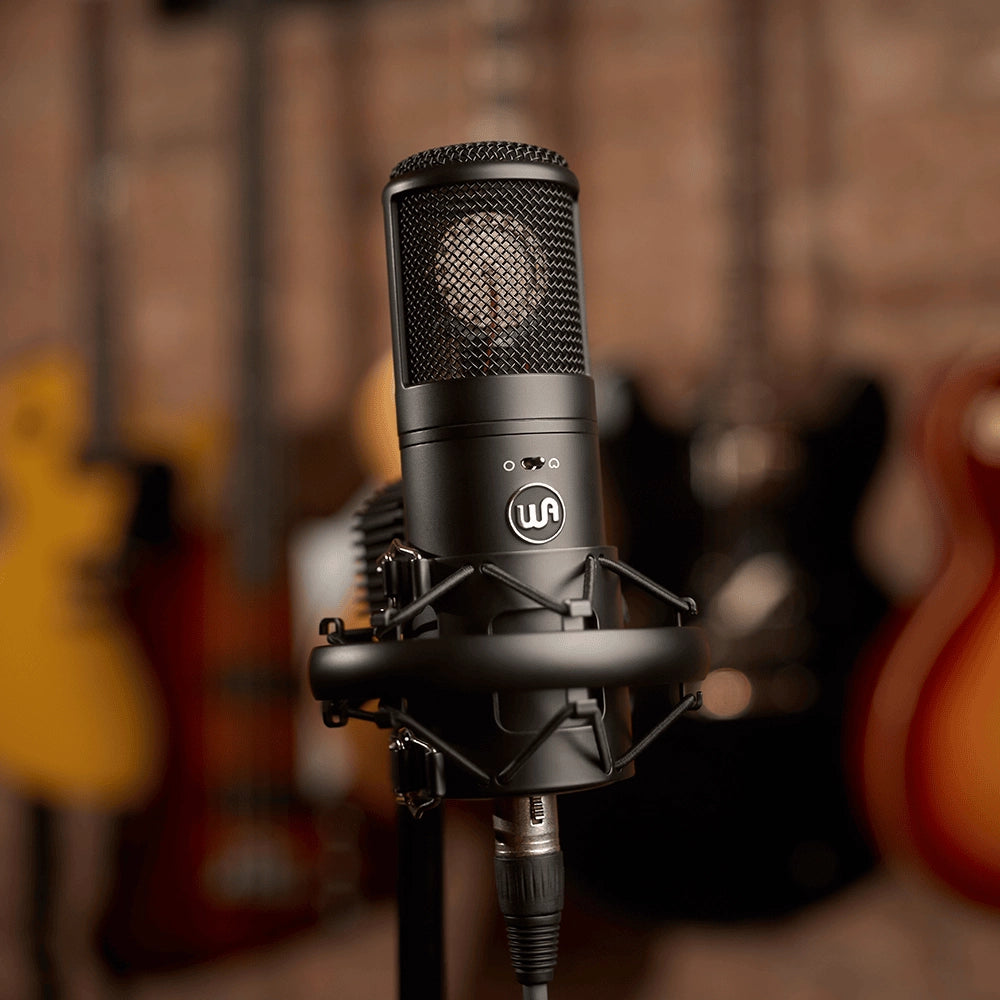

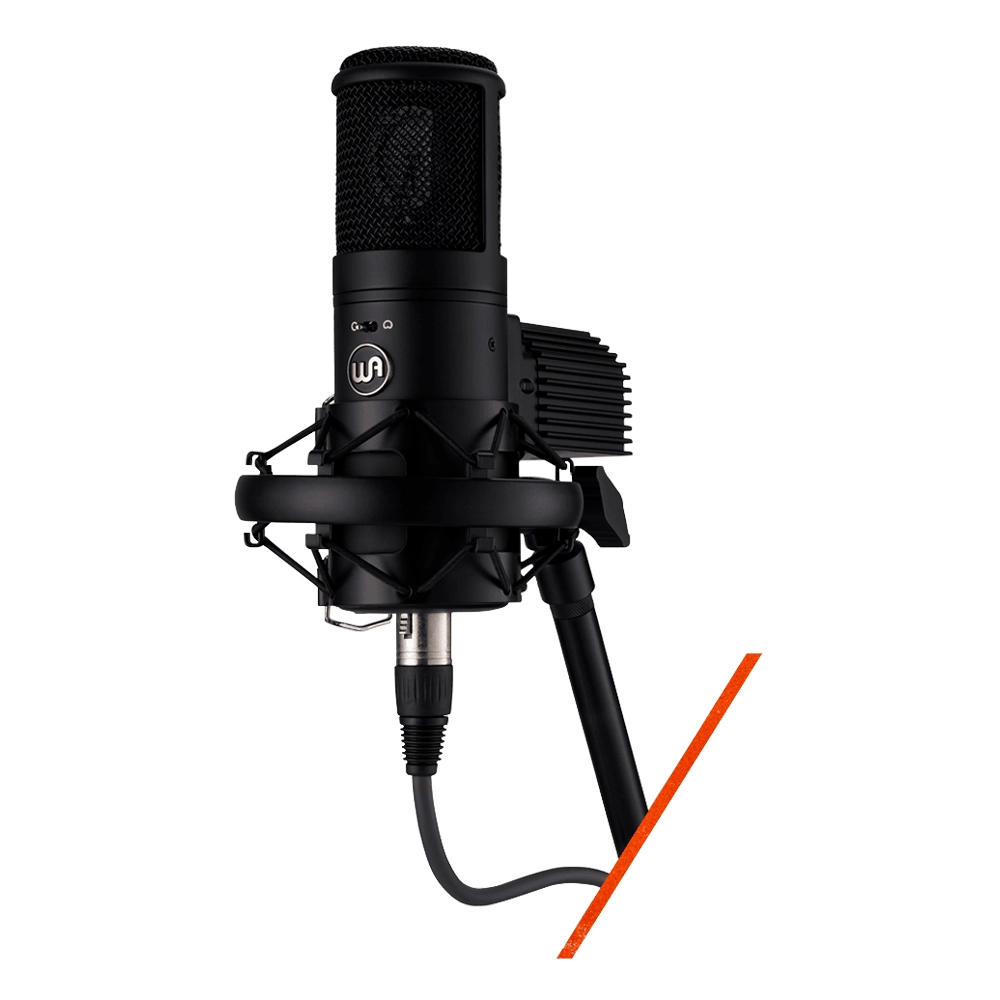

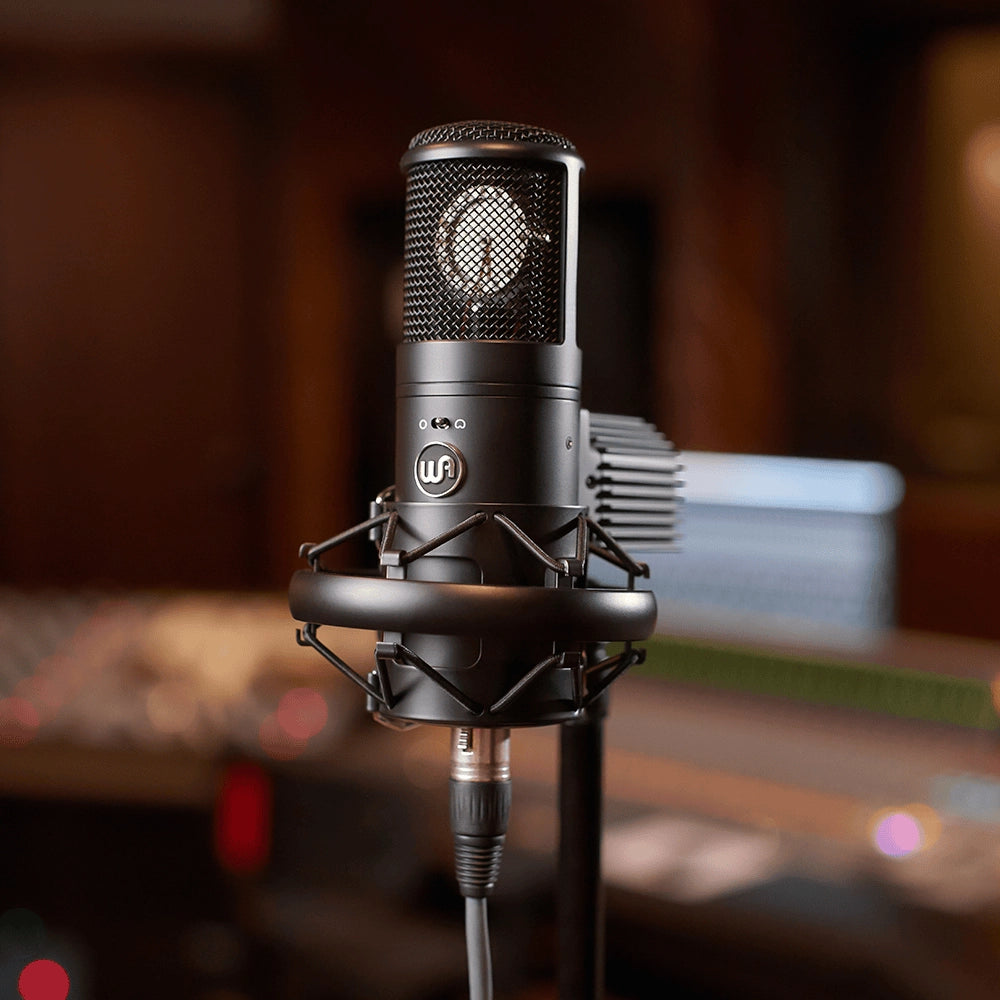

Warm Audio WA-8000 Large-Diaphragm Multipattern Tube Condenser Microphone

Disponible
SKU: WA-8000
Precio de oferta$1,199.99 USD Precio normal$1,350.00 USD

Features

  • Inspired by Iconic R&B and Hip-Hop Mic
  • Cardioid and Omni Polar Patterns
  • All-Brass K67-Style Capsule
  • Military-Grade NOS 6AU6 Tube
  • Custom Lundahl Transformer

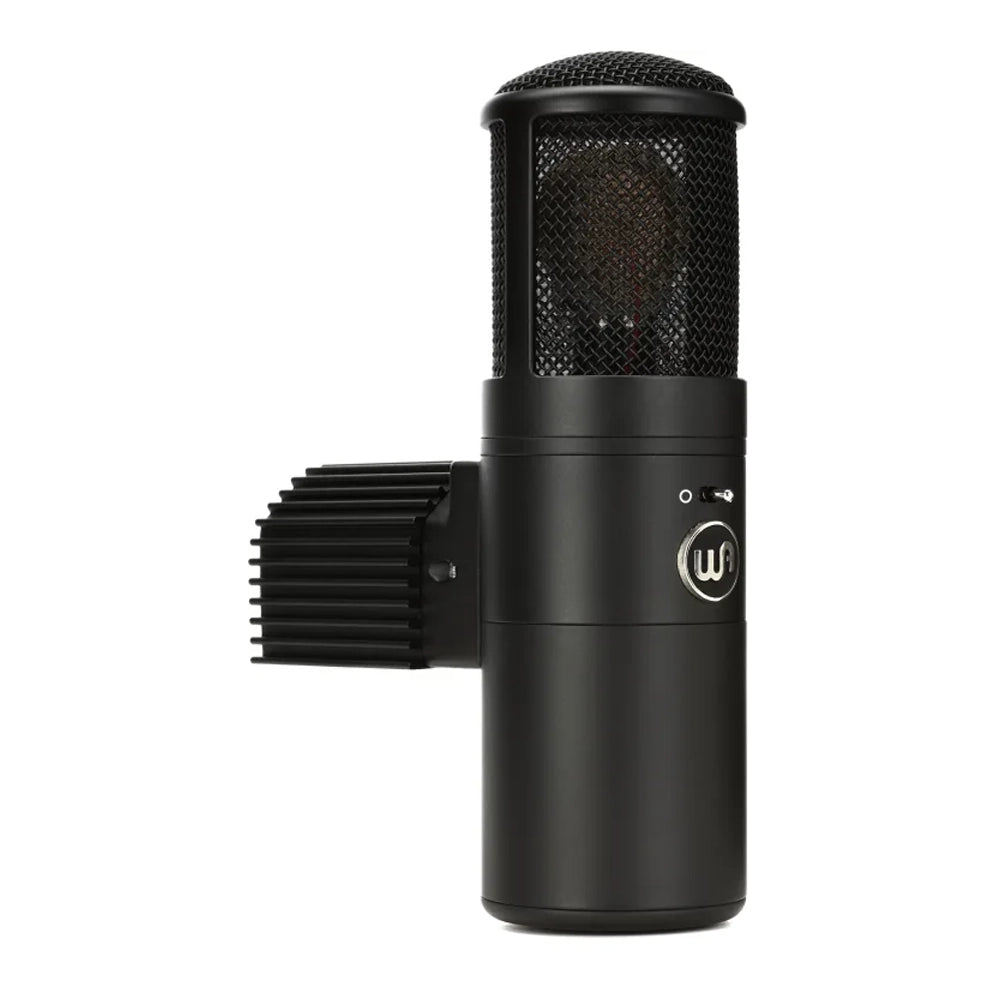

  • External Tube Mount and Heat Sink
  • Polished, Airy Highs and Clear Mids
  • Detail and Nuance with Low Self-Noise
  • Boutique 7-Pin Tube Mic Cable
  • Includes Shockmount, PSU, and Hard Case

Technical Specification


  • Custom, All-Brass K67-Inspired Capsule

  • Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS Mylar (PET Film)

  • Custom Transformer From Lundahl Sweden

  • New-Old-Stock 6AU6 Vacuum Tube

  • Gotham 5 Meter GAC-7, 7-Pin Tube Microphone Cable

  • Wima Capacitors

  • Self-Noise: 15dB (A-Weighted) Cardioid, 17dB (A-Weighted) Omni

  • Polar Patterns: 2 Patterns - Cardioid, Omni

  • Dynamic Range: 113dBA

  • Maximum SPL: 131dB (Cardioid), 134dB (Omni)

  • Frequency Range: 20 Hz~20 KHz

  • Output Impedance: 100 ohms

  • Rated Load Impedance: ≥1kOhms

  • S/N Ratio: 76dB (Cardioid), 73dB (Omni)

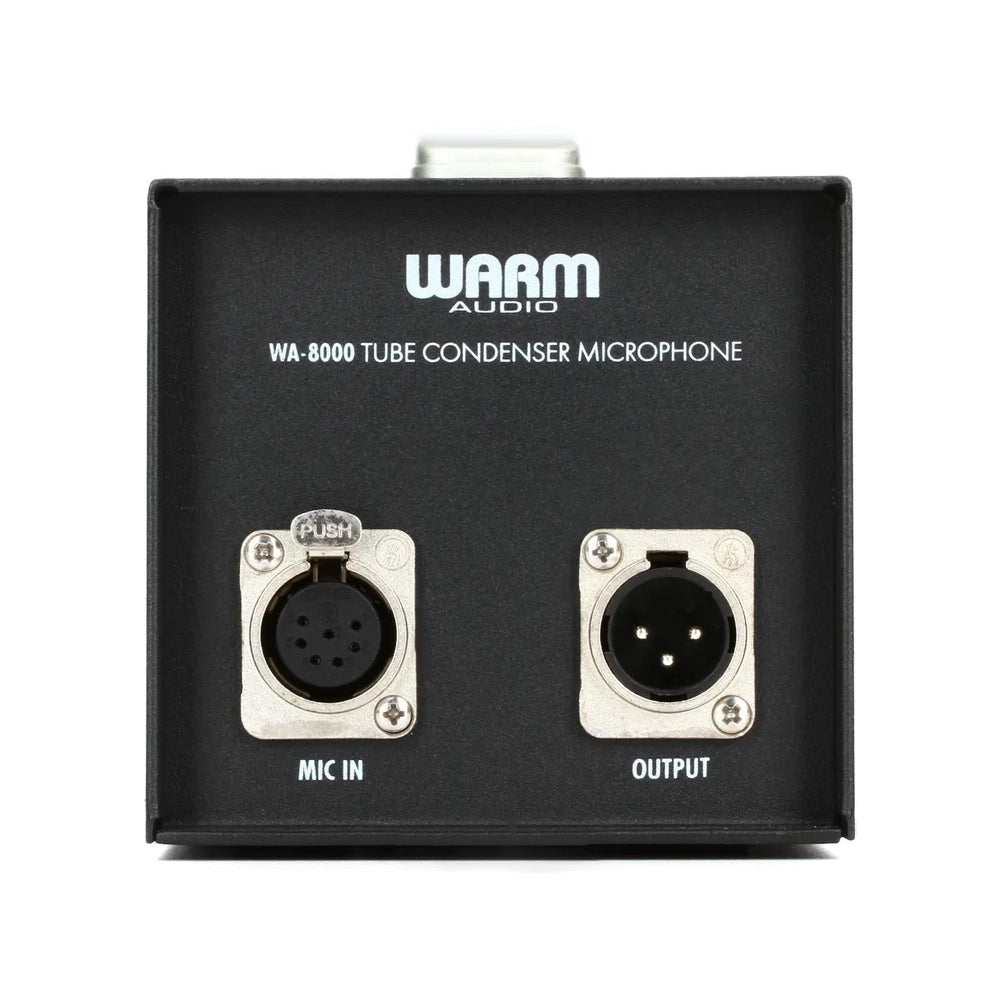

  • External IEC Grounded PSU

  • Total Weight: 13.3Lbs

  • Mic Length: 7.5 Inches

  • Mic Diameter: 2.5 Inches

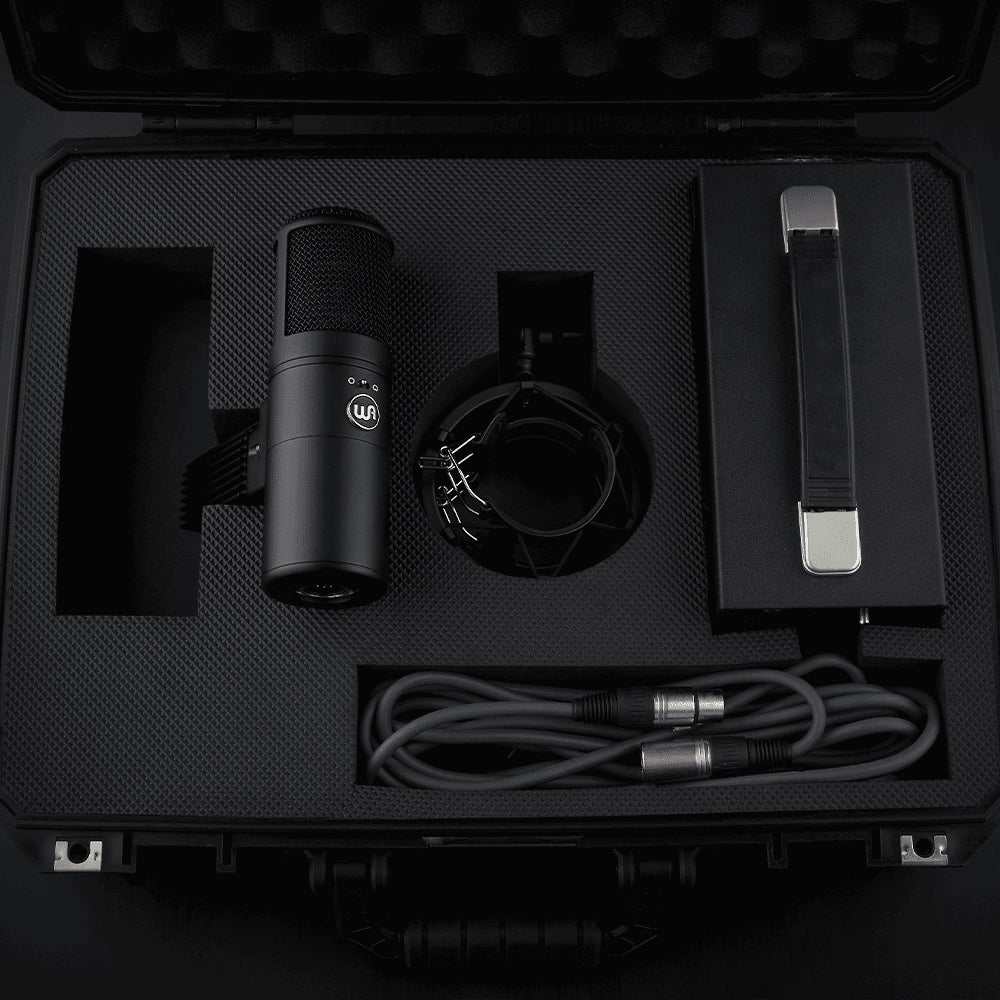

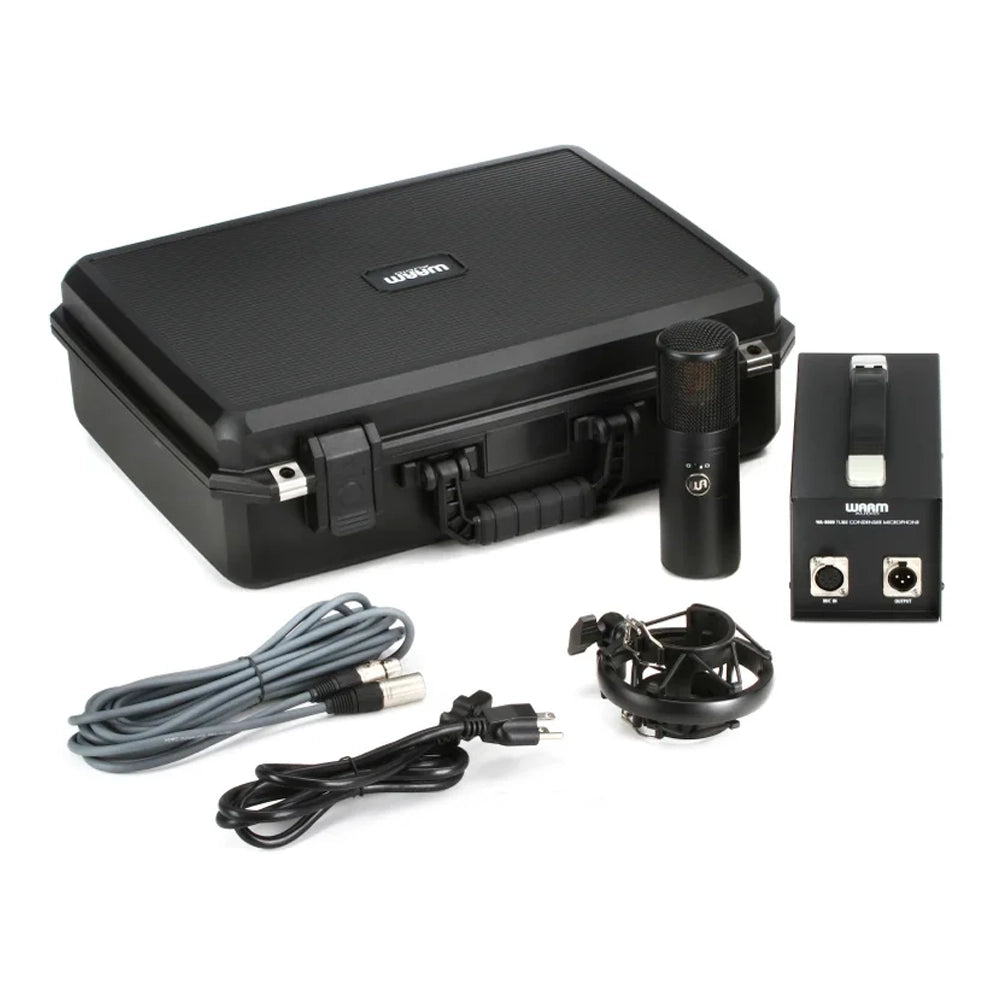

  • Includes: WA-8000 Microphone, External Power Supply, IEC Power Cable, Shock Mount, Gotham GAC-7 Cable, And Custom Hard Case



Cardioid Frequency Chart



Omni-Directional Frequency Chart
