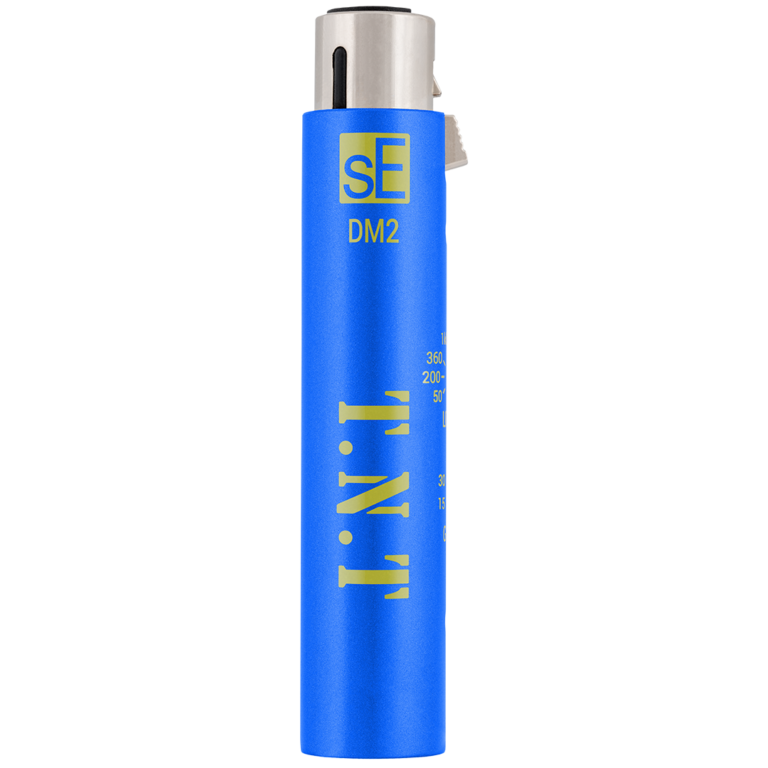

sE Electronics DM2 TNT 1-Channel Active Inline Preamp

SKU: DM2-MIC-PRE-U
Sale price$139.99 USD Regular price$179.99 USD

DM2 TNT

EXPLOSIVE LEVEL FOR ALL YOUR PASSIVE MICS

The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.

Highlights:

  • How also available in a matte-black finish
  • Switchable, clean and consistent gain from moderate +15dB to explosive +30dB
  • Eight load settings ranging from 50 ohms to stunningly high 10 mega ohms to precisely match any mic
  • Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
  • Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
  • All-metal housing and premium finish ensures the DM2 can handle demanding on-tour or recording/broadcast studio lifestyles
  • Gold plated XLR connector for loss-free reliable signal connection

Specs:

Power

  • Electrical Impedance: 135 Ohms
  • Recommended Load Impedance: >1K Ohms
  • Connectivity: 3-pin male/female XLR connector
  • Powering: 48V Phantom Power (P48 according to IEC 61938

Sound

  • Frequency range: 10 Hz - 120 kHz (-0.3 dB)
  • Gain: 15 dB / 30 dB
  • Current consumption: 3.1 mA
  • Max output level: (0.5% THD)9.5 dBV (3.0 V)
  • Output noise level: 1 μV @ 15 dB / 6.6 μV @ 30 d

Dimensions

  • Preamp diameter: 19 mm (0.75 in.)
  • Preamp length: 96 mm (3.78 in.)
  • Preamp weight: 80 g (2.82 oz.)
